EOT高速光电探测器，光电探测器
总部在美国的EOT(Electro-Optics Technology)公司成立于1987年，专注于生产和开发高平均功率及高峰值功率法拉第旋转器，隔离器以及高速光电探头，为知名的光纤激光器厂商批量提供产品，并具有为特殊要求定制产品的开发生产能力。法拉第光旋转器／光隔离器广泛应用于各种对于返回光极敏感的光学系统中，如多级激光放大器，光参量振荡器，环形激光器，掺饵光纤放大器(用于隔离980nm泵浦光的反馈)，种子注入型激光器，非线性光学，光传输系统等。 产品包括：法拉第旋转器和隔离器，高速光电探测器。

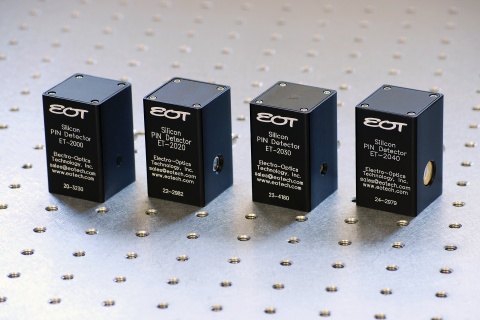

偏压硅探测器
| Model No. |
ET-2000 |
ET-2020 |
ET-2030 |
ET-2040 |
| Detector Type |
PIN |
PIN |
PIN |
PIN |
| Rise Time/Fall Time |
<350ps/<350ps |
<1.5ns/<1.5ns |
<300ps/<300ps |
<30ns/<30ns |
| Responsivity at 830nm |
0.12mA/W |
0.6A/W |
0.47A/W |
0.6A/W |
| Bandwidth |
>1.0GHz |
>200MHz |
>1.2GHz |
>25MHz |
| Active Area Diameter |
110um x 55um |
2.55mm |
0.4mm |
4.57mm |
偏压InGaAs探测器
| Model No. |
ET-3000 |
ET-3010 |
ET-3020 |
ET-3040 |
| Detector Type |
PIN |
PIN |
PIN |
PIN |
| Rise Time/Fall Time |
<175ps/<175ps |
<175ps/<175ps |
<6ns/<250ns |
<1.25ns/<3.70ns |
| Responsivity at 1300nm (A/W) |
0.9 |
0.85 |
0.9 |
0.9 |
| Bandwidth |
>2GHz |
>2GHz |
>2.5MHz |
>50MHz |
| Active Area Diameter |
100μm |
100μm |
3.0mm |
1.0mm |
<2GHz 放大光电探测器
| Model No. |
ET-2030A |
ET-3000A |
| Detector Material |
Silicon |
InGaAs |
| Rise Time/Fall Time (ps) |
<500/<500 |
<400/<400 |
| Conversion Gain (V/W) |
450 at 830nm |
900 at 1300nm |
| Bandwidth |
30kHz-1.2GHz |
30kHz-1.5GHz |
| Active Area Diameter (μm) |
400μm |
100μm |
TTL和模拟探测器
| Model No. |
ET-2030TTL |
ET-3000TTL |
| Detector Type |
PIN |
PIN |
| Active Area Diameter (μm) |
400 |
100 |
| Analog Output |
|
|
| Rise Time/Fall Time (ps) |
<300/<300 |
<175/<175 |
| Responsivity (A/W) |
0.47 at 830nm |
0.9 at 1300nm |
| Bandwidth |
DC-1.2GHz |
DC-1.2GHz |
| TTL Output |
|
|
| Rise Time/Fall Time (ns) |
<8/<9 |
<8/<9 |
| Bandwidth |
DC-60MHz |
DC-60MHz |
>12.5GHz GaAs 和 InGaAs探测器
| Model No. |
ET-3500 |
ET-3500F |
ET-4000 |
ET-4000F |
| Detector Type |
PIN |
PIN |
PIN |
PIN |
| Rise Time/Fall Time (ps) |
<25/<25 |
<25/<25 |
<30/<30 |
<30/<30 |
| Responsivity (A/W) |
>0.90 at 1300nm |
>0.65 at 1300nm |
0.53 at 830nm |
0.38 at 830nm |
| Bandwidth |
>15GHz |
>15GHz |
>12.5GHz |
>12.5GHz |
| Active Area Diameter (μm) |
32 |
32 |
60 |
60 |
>9GHz放大光电探测器
| Model No. |
ET-3500A |
ET-3500AF |
ET-4000A |
ET-4000AF |
| Detector Material |
InGaAs |
InGaAs |
GaAs |
GaAs |
| Rise Time/Fall Time (ps) |
<40/<40 |
<40/<40 |
<40/<40 |
<40/<40 |
| Conversion Gain (V/W) |
>900 at 1300nm |
>650 at 1300nm |
530 at 830nm |
380 at 830nm |
| Bandwidth |
20kHz – 9GHz |
20kHz – 9GHz |
20kHz – 9GHz |
20kHz – 9GHz |
| Active Area Diameter(μm) |
32 |
32 |
60 |
60 |

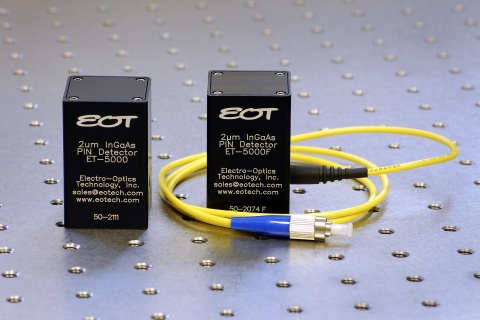

>12.5GHz 2um高速探测器
| Model No. |
ET-5000 |
ET-5000F |
| Detector Type |
PIN |
PIN |
Rise Time/Fall Time (ps) |
28 |
28 |
| Responsivity (A/W at 2000nm) |
1.3 |
0.95 |
| Bandwidth |
>12.5GHz |
>12.5GHz |
| Active Area Diameter (μm) |
40 |
40 |
2um放大高速探测器
| Model No. |
ET-5000A |
ET-5000AF |
| Detector Type |
PIN |
PIN |
| Rise Time/Fall Time (ps) |
40 |
40 |
| Conversion Gain (V/W at 2000nm) |
1300 |
950 |
| Bandwidth |
20kHz-9GHz |
20kHz-9GHz |
| Active Area Diameter (μm) |
40 |
40 |
1.5-5um PbSe 大面积探测器
Model No. |
ET-6000 |
| Detector Type |
Photoconductor |
| Gain |
100x |
| Rise Time/Fall Time (μs) |
23 |
| Responsivity (High Impedance) |
>3.2x105V/W at 3.5μm |
| Responsivity (50Ω Impedance) |
>1.6x105V/W at 3.5μm |
| Bandwidth |
0.02kHz-15kHz |
| Active Area Diameter (mm x mm) |
5 x 5 |
|
