RPC PHOTONICS衍射光学元件,散射片,微透镜阵列,涡旋相位板

RPC PHOTONICS衍射光学元件,散射片,微透镜阵列,涡旋相位板

RPC PHOTONICS
衍射光学元件,散射片,微透镜阵列,涡旋相位板

RPC PHOTONICS衍射光学元件,散射片,微透镜阵列,涡旋相位板 RPC PHOTONICS衍射光学元件,散射片,微透镜阵列,涡旋相位板 RPC PHOTONICS衍射光学元件,散射片,微透镜阵列,涡旋相位板
RPC PHOTONICS衍射光学元件,散射片,微透镜阵列,涡旋相位板 RPC PHOTONICS衍射光学元件,散射片,微透镜阵列,涡旋相位板 RPC PHOTONICS衍射光学元件,散射片,微透镜阵列,涡旋相位板

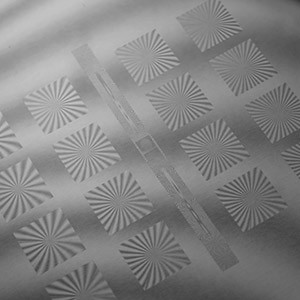

涡旋相位板 Vortex Phase Plates

涡旋相位板涡旋相位板

涡旋相位板 涡旋相位板 涡旋相位板

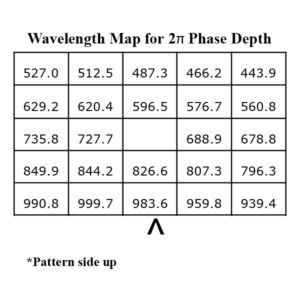

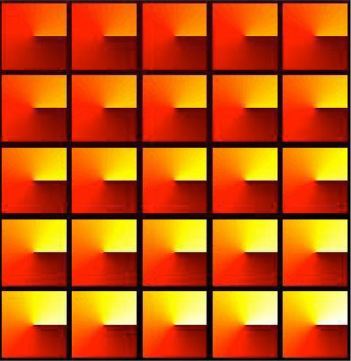

VPP-1a
Master: u6243E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: 1
Material: Polymer replicated on glass substrate
Transmission spectrum: 350-2000nm

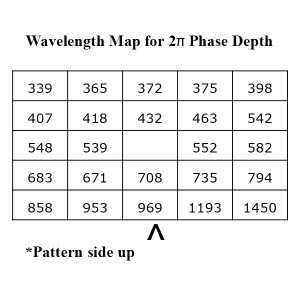

VPP-1b
Master: u9182E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: 1
Material: Polymer replicated on glass substrate
Index of refraction: 1.56
Transmission spectrum: 350-2000nm
Temperature range: -150°C to 120°C
VPP-1c
Master: u9271E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: 1
Material: Polymer replicated on glass substrate
Index of refraction: 1.56
Transmission spectrum: 350-2000nm
Temperature range: -150°C to 120°C
涡旋相位板 涡旋相位板 涡旋相位板

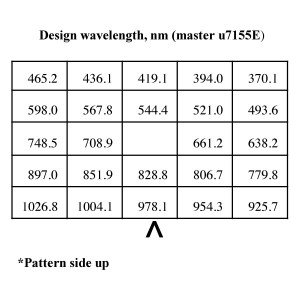

VPP-2
Master: u7155E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: 2
Material: Polymer replicated on glass substrate
Index of refraction: 1.56
Transmission spectrum: 350-2000nm
Temperature range: -150°C to 120°C

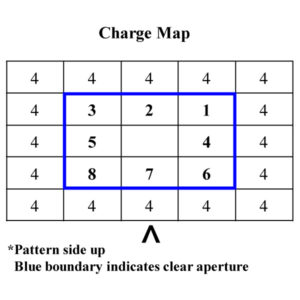

VPP-m1064
Master: u9311E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: Various
Material: Polymer replicated on glass substrate
Transmission spectrum: 350-2000nm
Temperature range: -150°C to 120°C

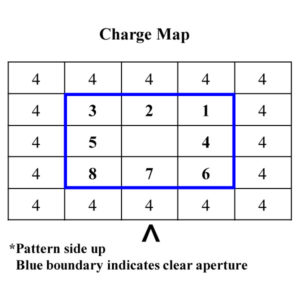

VPP-m1340
Master: u13087E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: Various
Material: Polymer replicated on glass substrate
Transmission spectrum: 350-2000nm
Temperature range: -150°C to 120°C
涡旋相位板 涡旋相位板 涡旋相位板
VPP-m1550
Master: u14077E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: Various
Material: Polymer replicated on glass substrate
Transmission spectrum: 350-2000nm
Temperature range: -150°C to 120°C
VPP-m1792
Master: u13103E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: Various
Material: Polymer replicated on glass substrate
Transmission spectrum: 350-2000nm
Temperature range: -150°C to 120°C

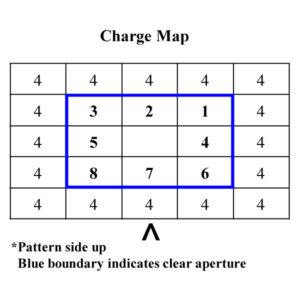

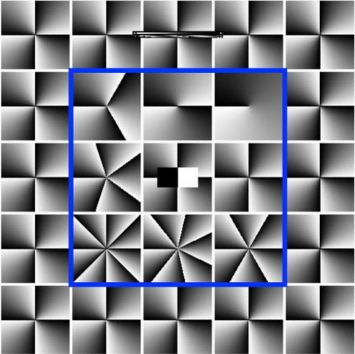

VPP-m589
Master: u1309E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: Various
Material: Polymer replicated on glass substrate
Index of refraction: 1.56
Transmission spectrum: 350-2000nm
Temperature range: -150°C to 120°C
涡旋相位板

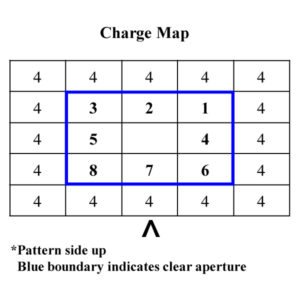

VPP-m633
Master: u9317E
Pattern dimension: 50mm x 50mm
Vortex aperture: 10mm x 10mm
Charge: Various
Material: Polymer replicated on glass substrate
Transmission spectrum: 350-2000nm
Temperature range: -150°C to 120°C

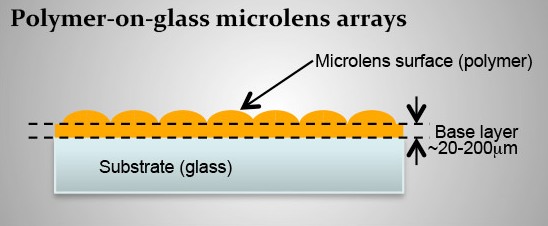

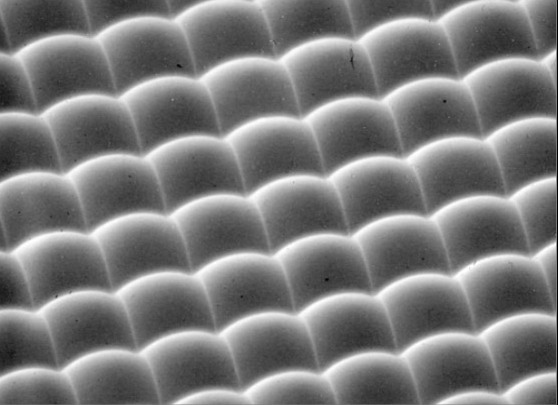

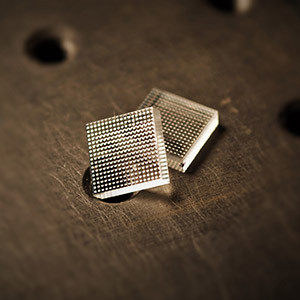

微透镜阵列 Microlens Arrays

微透镜阵列

微透镜阵列



MLA-S100-f4
MLA-S100-f8
MLA-S100-f10
MLA-S100-f11
MLA-S100-f12
MLA-S100-f15
MLA-S100-f17
MLA-S100-f21
MLA-S100-f28
MLA-S125-f10
MLA-S125-f15
MLA-S125-f20
MLA-S125-f25
MLA-S125-f30
MLA-S250-f10
MLA-S250-f15
MLA-S250-f20
MLA-S250-f25
MLA-S250-f30
MLA-S600-f28
MLA-S1000-f5.5
MLA-H1000-f75



工程散射片 HiLAM散射片 高分子聚合物膜

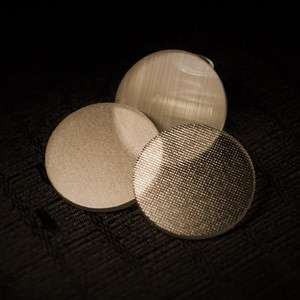

Engineered Diffusers
Polymer-On-Glass
EDC
EDC-0.25-07118-A
EDC-0.5-07101-A
EDC-1-07108-A
EDC-2-07331-A
EDC-4-09042-A
EDC-5-06217-A
EDC-10-15027-A
EDC-10-08368-A
EDC-15-08160-A
EDC-15-15132-A
EDC-20-14175-A
EDC-30-07210-A
EDC-40-08194-A
EDC-50-10111-A
EDC-60-06397-A
EDC-80-12227-A
EDC-100-06270-A
EDC-120-12103-A
EDS
EDS-0.16-08358-A
EDS-0.25-08354-A
EDS-0.5-07392-A
EDS-1-08154-A
EDS-2-08168-A
EDS-4-07165-A
EDS-5-07406-A
EDS-10-06201-A
EDS-15-08116-A
EDS-20-05584-A
EDS-40-07315-A
EDS-50-09039-A
EDS-60-16143-A
EDR
EDR-2×1-10126-A
EDR-5×1-09262-A
EDR-6×3-06184-A
EDR-10×2-10123-A
EDR-14×8-07307-A
EDR-20×10-06283-A
EDR-24×12-12152-A
EDR-40×20-11246-A
EDR-44×36-07281-A
EDR-60×30-11197-A
EDL
EDL-4-07234-A
EDL-5-07242-A
EDL-10-07268-A
EDL-20-07337-A
EDL-40-15237-A
EDL-40×0.4-11144-A
EDL-60-10316-A
EDL-70-11183-A
EDL-100-11287-A
EDL-120-14323-A
Embossed Engineered Diffusers
EDC-10-15027-E
EDC-20-14175-E
EDC-30-07210-E
EDC-80-16043-E
Engineered Diffuser Films
EDF-C1
EDF-L1
EDF-S1

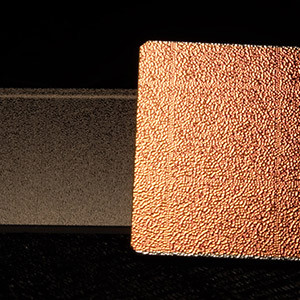

Etched Engineered Diffusers
