FJW红外观察仪

FJW findrscope
红外观察仪,紫外观察仪,红外相机,热观察仪



产品主要包括:
350-1550nm红外观察仪:
   84499A,84499A-5,
   84499,84499-5,
   85100,85100-5,
   85100A,85100A-5,
   85268,85268-5,
   85268A,85268A-5,
   89400,89400P

180-1550nm紫外观察仪:85300,85300-5
400-1800nm红外相机:85720,85700
400-2200nm红外相机:85726,85706
7-14um热观察仪:85800
显微镜用红外/紫外观察仪:85430A,85430A-5,84530UV-5,84530UV
红外滤光片轮式观察仪:85338A
头戴式红外观察仪:85050A ,85051A





84499A红外观察仪

84499A红外观察仪

Field of View : 40°
Magnification: ~ 1:1
Spectral Sensitivity : 350-1350nm
Lens: Custom Infragon 25mm, f/1.0
Standard Focal Range : 100mm, (4") to infinity
Regions Displayed: Near UV, Visible, Near-IR
Peak Sensitivity : 800nm
Resolution 70 Lines/mm, minimum
Display: P20 Phosphor
Power: (1) standard "C" cell alkaline battery
Battery Life : >250-hours int., 375-hours continuous
Sensitivity Test : See 1350nm, 400μW LED @ 8-ft.
Operating Temperature -32° to 46°C, (-25 to 115°F)

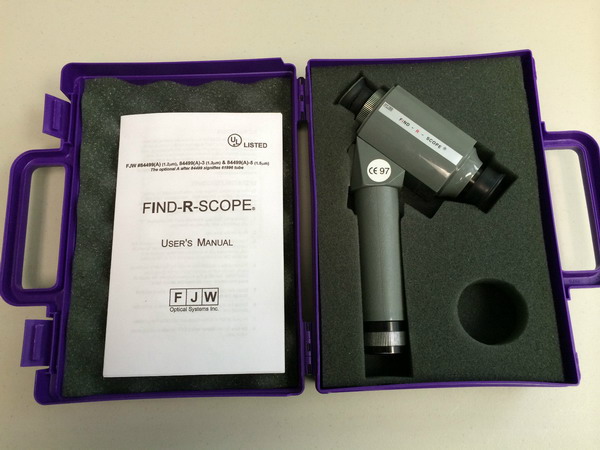

The FIND-R-SCOPE 84499A is a self-contained, hand-held Infrared Viewer with a spectral sensitivity of 350-1350 nm.

  • Lightweight
  • Self-Contained
  • UL Approved
  • High-Resolution
  • Custom f/1.0 Infragon Lens
  • User Adjustable Eyepiece
  • Standard Tripod Mount
  • Accepts Optional Filters
  • Accepts Close-up Lenses
  • Accepts Optional Iris
  • Accepts Optional CCD Mt.
  • Includes Battery
  • Includes Hard Side Case
  • 18-Month Limited Warranty
