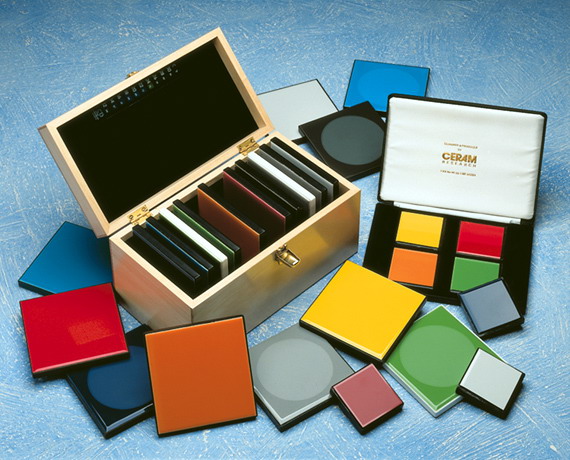

英国陶瓷研究协会/BCRA (British Ceramic Research Association) 陶瓷标准色板



BCRA (British Ceramic Research Association)是英国陶瓷研究协会,提供的陶瓷标准颜色板是业界常用的颜色标准,用于标定光谱分光式色度计,包括半球光路测试条件和 d/d 测试条件。

BCRA陶瓷标准色板

BCRA Series II色板的尺寸:5cm×5cm,共包括14块板:
7 chromatic standards for spectral response
2 colour difference standards
3 neutral grey standards for photo linearity
1 Glossy Black Standard
1 Glossy white Standard



1,基本色Basic Colors
2,灰阶及柔和色Grey Scale and Pastel Colors
3,特殊色Special Colors

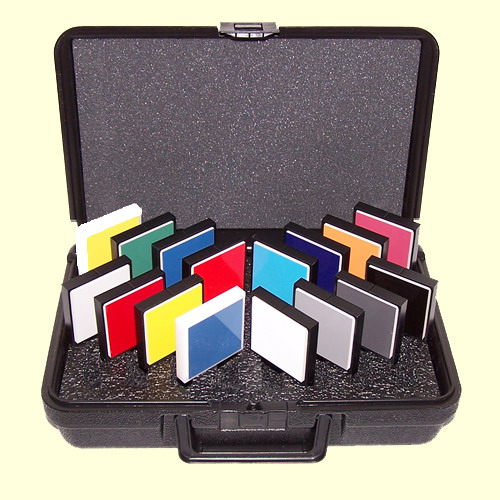

Set #1 - 基本色Basic Colors

陶瓷标准色板

Part No. ATBC-16-02-u (uncalibrated)
Part No. ATBC-16-02-c (calibrated)

B1. Light Grey
B2. Red
B3. Difference Yellow
B4. Difference Mid-Blue
B5. White
B6. Mid-Grey
B7. Deep Grey
B8. Black B9. Yellow
B10. Deep Green
B11. Mid-Blue
B12. Deep Red-Orange
B13. Cyan
B14. Deep Blue
B15. Mid-Orange
B16. Deep Rose Pink

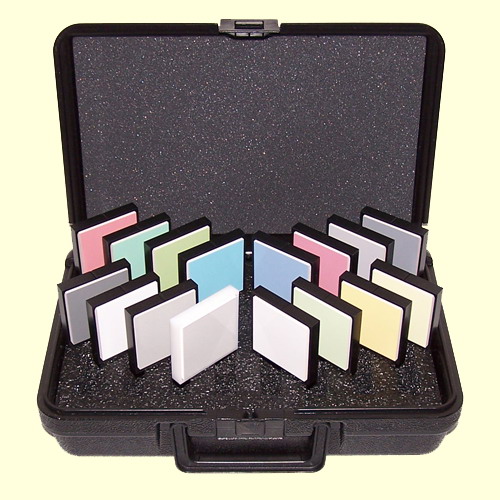

Set #2 — Grey Scale and Pastel Colors

陶瓷标准色板 Part No. ATGP-16-02-u (uncalibrated)
Part No. ATGP-16-02-c (calibrated)

P1. Grey 20%
P2. Grey 85%
P3. Difference Grey 50%
P4. Grey 40%
P5. Grey 80%
P6. Light Green
P7. Light Orange
P8. Light Yellow P9. Light Pink
P10. Light Blue Green
P11. Light Yellow Green
P12. Light Cyan
P13. Light Blue
P14. Rose Pink
P15. Grey 50%
P16. Grey 33%

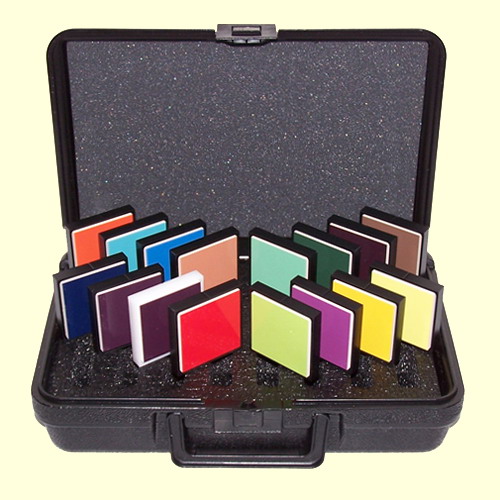

Set #3 — Special Colors 特殊色

陶瓷标准色板

Part No. ATSC-16-02-u (uncalibrated)
Part No. ATSC-16-02-c (calibrated)

S1. Dark Blue-Violet
S2. Deep Violet
S3. Difference Deep Violet
S4. Deep Red
S5. Yellow-Green
S6. Purple
S7. Yellow-Orange
S8. Greenish-Yellow S9. Red-Orange
S10. Greenish-Blue
S11. Dark Blue
S12. Mid-Brown
S13. Mid-Green
S14. Dark Green
S15. Dark Purple
S16. Dark Brown




标准色板目录
BCRA-14-02C Color Standard Set CERAM Research Tiles, Set of 14 2" standards, Boxed/Calibrated
BCRA-14-02U Color Standard Set CERAM Research Tiles, Set of 14 2" standards, Boxed/Uncalibrated
BCRA-CY-02C Cyan BCRA Tile-Calibrated CERAM Cyan Tile, 2" , Boxed, calibrated (8°/Hemi)
BCRA-CY-02U Cyan BCRA Tile-Uncalibrated CERAM Cyan Tile, 2" , Boxed, Uncalibrated (8°/Hemi)
BCRA-GS9-02 BCRA Grey Scale Set CERAM Gray scale set, 8 greys and black glass, for 0:45 calibration/small spot
ATBC-16-02u Avian Technologies/Mt. Baker Research Color Set Equivalent to BCRA Series II tiles plus black, white, extra colors
ATGP-16-02u Avian Technologies/Mt. Baker Research Color Set Pastel and extended grey scale set of 16 tiles
ATSC-16-02u Avian Technologies/Mt. Baker Research Color Set Extended (Special) color set, saturated colors, extra whites and greys
Calibrated set AT/MBR Color sets, 8° Hemi refl calibration any set, add (no discount on calibrations)
CSS-CCS-12-02c CCS Colors/Full Set-Calibrated CCS Colour/Grey Standards, 2" square, glossy, boxed, Calibrated at 8°/Hemi. Geom.
CSS-CCS-12-02u CCS Colors/Full Set-unCalibrated CCS Colour/Grey Standards, 2" square, glossy, boxed, typical data given

荧光色度标准

FFS-BL1-02 Colored Fluorescent Standard-Blue 2" Diameter UV Activated Fluorescent Standard- ALN-BP Blue
FFS-BL2-02 Colored Fluorescent Standard-Blue 2" Diameter UV Activated Fluorescent Standard- SPEA Blue
FFS-BG-02 Colored Fluorescent Standard-Blue Green 2" Diameter UV Activated Fluorescent Standard- 480 Blue green
FFS-GR-02 Colored Fluorescent Standard-Br.Green 2" Diameter UV Activated Fluorescent Standard- ALN-GP Green
FFS-OR-02 Colored Fluorescent Standard-Orange 2" Diameter UV Activated Fluorescent Standard- YSA Orange
FFS-BR-02 Colored Fluorescent Standard-Brt.Red 2" Diameter UV Activated Fluorescent Standard- HRA Red
