S-waveplate偏振转换片

S-waveplate偏振转换片



S-waveplate偏振转换片

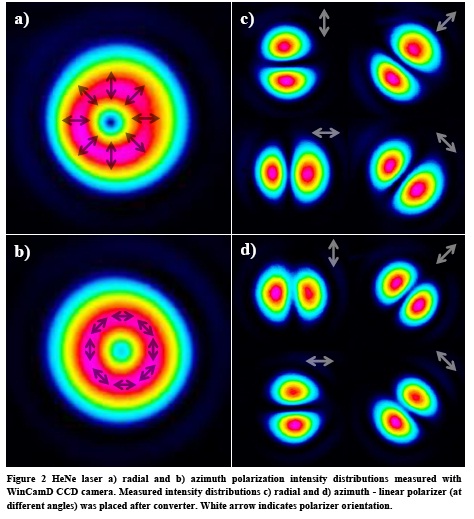

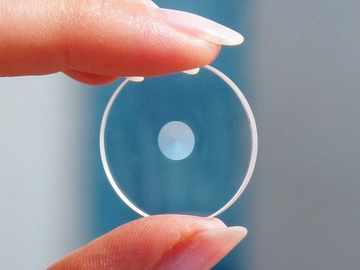

Altechna和Wophotonics公司的专利产品:S-waveplate偏振转换片是一种超结构波片可以将线偏振光转换为辐射状或环状偏振。

S-waveplate偏振转换片S-waveplate偏振转换片

特点:

  • Converts linear polarization to radial or azimuthal
  • Can be used to create an optical vortex
  • High damage threshold
  • Nearly 100% efficiency in polarization conversion for dedicated wavelengths
  • 50-90% transmission (AR coatings applicable)
  • Large aperture possible (up to 10 mm or bigger; standard is 6 mm)
  • No glued components – more resistant to heat
  • No “ineffective center” problem
  • No segment stitching

S-waveplate偏振转换片



Product
Operation wavelength
Transmission
Clear Aperture, mm
RPC-488-02
488 nm ±15 nm
> 40 %
2
RPC-488-04
4
RPC-488-06
6
RPC-488-08
8

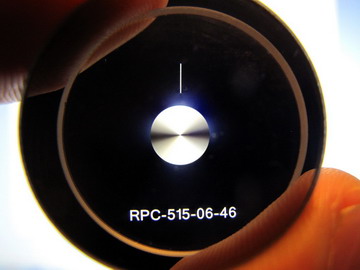

RPC-515-02
515 nm ±20 nm
> 45 %
2
RPC-515-04
4
RPC-515-06
6
RPC-515-08
8
RPC-632-02
632 nm ±20 nm
> 50 %
2
RPC-632-04
4
RPC-632-06
6
RPC-632-08
8
RPC-800-02
800 nm ±25 nm
> 55 %
2
RPC-800-04
4
RPC-800-06
6
RPC-800-08
8
RPC-1030-02
1030 nm ±35 nm
> 65 %
2
RPC-1030-04
4
RPC-1030-06
6
RPC-1030-08
8
RPC-1550-02
1550 nm ±40 nm
> 75 %
2
RPC-1550-04
4
RPC-1550-06
6
RPC-1550-08
8



Altechna公司还提供:

Ultrafast Optics: 超快光学元件
Low GDD Ultrafast Mirrors:低GDD超快反射镜
Gires-Tournois Interferometer Mirrors:Gires-Tournois干涉仪反射镜
Ti:Sapphire Crystals
Yb:KGW and Yb:KYW Crystals

High Energy Opitcs: 高功率光学元件
Polarizing Cubes for High Energy Applications:高功率偏振立方体
High Energy Waveplates: 高功率波片
High Energy Glan Laser Polarizers
Low Loss HR Mirrors

Polarizing Optics:偏振元件
Zero Order Air Spaced Waveplates
High Contrast Thin Film Polarizers
Mid-IR Waveplates: 中红外波片
S-waveplate (Radial Polarization Converter)

Laser Accessories:激光附件
Watt Pilot Motorized Attenuator:电动衰减器
PowerXP Compact Motorized Attenuator:小型电动衰减器
Variable Beam Expanders:扩束器
MOTE X - Motorized Variable Beam Expander: 电动扩束器

Clear aperture, mm
Operational wavelenght, mm
Bandwidth, nm
Configuration
Optimization
Attenuation range @ CWL
Product ID
10
532
±10
λ/2 LO waveplate + high energy polarizing cube
0.5-95
>20, 10 Hz, 10 ns, 1064 nm
2-CVB-EPOC-10-0532-M
10
1064
±10
λ/2 LO waveplate + high energy polarizing cube
0.5-95
>20, 10 Hz, 10 ns, 1064 nm
2-CVB-EPOC-10-1064-M
10
1550
±10
λ/2 LO waveplate + high energy polarizing cube
0.5-95
>20, 10 Hz, 10 ns, 1064 nm
2-CVB-EPOC-10-1550-M
10
355
±10
λ/2 ZO waveplate + high energy polarizing cube
0.5-95
>20, 10 Hz, 10 ns, 1064 nm
2-CVB-EPOC-10-0355-M
15
532
±2
λ/2 LO waveplate + cemented polarizing cube
0.5-95
0.3, 10 Hz, 10 ns, 1064 nm
2-CVB-MP-15-0532-M
15
780
±2
λ/2 LO waveplate + cemented polarizing cube
0.5-95
0.3, 10 Hz, 10 ns, 1064 nm
2-CVB-MP-15-0780-M
15
1064
±2
λ/2 LO waveplate + cemented polarizing cube
0.5-95
0.3, 10 Hz, 10 ns, 1064 nm
2-CVB-MP-15-1064-M
15
1550
±2
λ/2 LO waveplate + cemented polarizing cube
0.5-95
0.3, 10 Hz, 10 ns, 1064 nm
2-CVB-MP-15-1550-M
15
532
±10
λ/2 LO waveplate + cemented polarizing cube
0.5-95
>0.3, 10 Hz, 10 ns, 1064 nm
2-CVB-MPEP-15-0532-M
15
780
±10
λ/2 LO waveplate + cemented polarizing cube
0.5-95
>0.3, 10 Hz, 10 ns, 1064 nm
2-CVB-MPEP-15-0780-M
15
1064
±10
λ/2 LO waveplate + cemented polarizing cube
0.5-95
>0.3, 10 Hz, 10 ns, 1064 nm
2-CVB-MPEP-15-1064-M
15
1550
±10
λ/2 LO waveplate + cemented polarizing cube
0.5-95
>0.3, 10 Hz, 10 ns, 1064 nm
2-CVB-MPEP-15-1550-M
15
355
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-0355-M
15
400
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-0400-M
15
515
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-0515-M
15
532
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-0532-M
15
780
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-0780-M
15
800
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-0800-M
15
1064
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-1064-M
15
1550
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-1550-M
15
355
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-0355-M
15
400
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-0400-M
15
515
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-0515-M
15
532
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-0532-M
15
780
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-0780-M
15
800
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-0800-M
15
1064
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-1064-M
15
1550
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-1550-M
15
343
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-0343-M
15
266
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-0266-M
15
780-820
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-7882-M
15
1020-1040
±5
λ/2 ZO waveplate + TFP
Transmission mode
0.5-95 %
2-EWP-T-1030-M
15
266
±5
λ/2 ZO waveplate + 2x TFP
Reflection mode
0.3-99 %
2-EWP-R-0266-M
15
780-820
±20
λ/2 ZO waveplate + 2x broadband (ultrafast) TFP
Broadband reflection mode
0.5-98 %
2-EWP-BBR-0800-M
15
1020-1040
±20
λ/2 ZO waveplate + 2x broadband (ultrafast) TFP
Broadband reflection mode
0.5-98 %
2-EWP-BBR-1030-M
15
775 - 825
±25
λ/2 ZO waveplate + Broadband (ultrafast) TFP
Reflection mode
4-96 %
2-UWP-R1-0800
15
775 - 825
±25
λ/2 ZO waveplate + Broadband (ultrafast) TFP
Reflection contrast mode
0.1-70 %
2-UWP-R2-0800
15
1005-1055
±25
λ/2 ZO waveplate + Broadband (ultrafast) TFP
Reflection mode
4-96 %
2-UWP-R1-1030
15
1005-1055
±25
λ/2 ZO waveplate + Broadband (ultrafast) TFP
Reflection contrast mode
0.1-70 %
2-UWP-R2-1030
15
750 - 850
± 50
λ/2 achromatic waveplate + Broadband (ultrafast) TFP
Reflection mode
4-96 %
2-UWPA-R1-0800
15
750 - 850
± 50
λ/2 achromatic waveplate + Broadband (ultrafast) TFP
Reflection contrast mode
0.1-70 %
2-UWPA-R2-0800
15
980 - 1090
± 50
λ/2 achromatic waveplate + Broadband (ultrafast) TFP
Reflection mode
4-96 %
2-UWPA-R1-1030
15
980 - 1090
± 50
λ/2 achromatic waveplate + Broadband (ultrafast) TFP
Reflection contrast mode
0.1-70 %
2-UWPA-R2-1030
12
650-1100
λ/2 Achromatic waveplate + Glan laser polarizer
1 - 90 %
>5 J/cm2 10 Hz, 10 ns, 1064 nm
2-BBWP-T-NIR1-M
12
900-2100
λ/2 Achromatic waveplate + Glan laser polarizer
1 - 90 %
>5 J/cm2 10 Hz, 10 ns, 1064 nm
2-BBWP-T-NIR2-M
12
2000-4000
λ/2 Achromatic waveplate + Glan laser polarizer
1 - 90 %
>5 J/cm2 10 Hz, 10 ns, 1064 nm
2-BBWP-T-MIR1-M
12
3000-5000
λ/2 Achromatic waveplate + Glan laser polarizer
1 - 90 %
>5 J/cm2 10 Hz, 10 ns, 1064 nm
2-BBWP-T-MIR2-M



Clear aperture
Operational wavelength, nm
Attenuation range
Polarization contrast
Product ID
8
532
0.1 - 99%
>1000:1
6-PWRXP-532
8
343
0.1 - 97%
>1000:1
6-PWRXP-343
8
355
0.1 - 97%
>1000:1
6-PWRXP-355
8
400
0.1 - 98%
>1000:1
6-PWRXP-400
8
515
0.1 - 99%
>1000:1
6-PWRXP-515
8
800
0.1 - 99%
>1000:1
6-PWRXP-800
8
1030
0.04 - 99%
>3000:1
6-PWRXP-1030
8
1064
0.04 - 99%
>3000:1
6-PWRXP-1064
8
780-820
0.5 - 95%
>200:1
6-PWRXP-780-820
8
1020-1040
0.5 - 95%
>200:1
6-PWRXP-1020-1040



Type
Expansion
Wavelength, nm
Input aperture, mm
Exit aperture, mm
Housing length, mm
Housing diameter, mm
Product ID
Nd:YAG line
2X
1064
6
12
56-62
25.4
6-BE-2X-1064-S
Nd:YAG line
3X
1064
5
15
56-62
25.4
6-BE-3X-1064-S
Nd:YAG line
4X
1064
4,5
18
66-72
25.4
6-BE-4X-1064-S
Nd:YAG line
5X
1064
3,2
17,5
78-84
25.4
6-BE-5X-1064-S
Nd:YAG line
6X
1064
2,2
13,2
82-88
25.4
6-BE-6X-1064-S
Nd:YAG line
8X
1064
2
16
110-118
25.4
6-BE-8X-1064-S
Nd:YAG line
10X
1064
1,8
18
138-148
25.4
6-BE-10X-1064-S
Nd:YAG line
2X
532
6
12
56-62
25.4
6-BE-2X-532-S
Nd:YAG line
3X
532
4,5
15
56-62
25.4
6-BE-3X-532-S
Nd:YAG line
5X
532
3
15
78-84
25.4
6-BE-5X-532-S
Nd:YAG line
10X
532
1,5
15
138-148
25.4
6-BE-10X-532-S
Nd:YAG line
2X
355
5
10
56-62
25.4
6-BE-2X-355-S
Nd:YAG line
3X
355
5
15
56-62
25.4
6-BE-3X-355-S
Nd:YAG line
5X
355
3
15
78-84
25.4
6-BE-5X-355-S
Nd:YAG line
10X
355
1,5
15
138-148
25.4
6-BE-10X-355-S
Nd:YAG line
4X
532
4
16
66-72
25.4
6-BE-4X-532-S
Nd:YAG line
6X
532
2
12
82-88
25.4
6-BE-6X-532-S
Nd:YAG line
8X
532
1,8
14,5
110-118
25.4
6-BE-8X-532-S
Nd:YAG line
8X
355
1,8
14,5
110-118
25.4
6-BE-8X-355-S
Nd:YAG line
6X
355
2
12
82-88
25.4
6-BE-6X-355-S
Nd:YAG line
4X
355
4
16
66-72
25.4
6-BE-4X-355-S



Line
Expansion
Wavelength, nm
Input aperture, mm
Exit aperture,mm
Housing diameter, mm
Housing length, mm
Mounting thread
Product ID
Dual Wavelength
2X - 8X
1064 / 532
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-1064-532
Dual Wavelength
2X - 8X
1030 / 515
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-1030-515
Dual Wavelength
2X - 8X
800 / 400
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-0800-400
Dual Wavelength
1.5X - 5X
1064 / 532
8
30
45
130
M27x1
6-BE-Tx1,5-5-1064-532
Dual Wavelength
1.5X - 5X
1030 / 515
8
30
45
130
M27x1
6-BE-Tx1,5-5-1030-515
Dual Wavelength
1.5X - 5X
800 / 400
8
30
45
130
M27x1
6-BE-Tx1,5-5-0800-400
Femtosecond
2X - 8X
515
6
25
20 - 45
100 - 120
M27x1
6-BE-sTx2-8-0515
Femtosecond
2X - 8X
1030
6
25
20 - 45
100 - 120
M27x1
6-BE-sTx2-8-1030
Femtosecond
1.5X - 5X
1030
8
30
45
130
M27x1
6-BE-Tx1,5-5-1030
Femtosecond
1.5X - 5X
515
8
30
45
130
M27x1
6-BE-Tx1,5-5-0515
Femtosecond
1.5X - 5X
343
8
30
45
130
M27x1
6-BE-Tx1,5-5-0343
Femtosecond
2X - 8X
1030
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-1030
Femtosecond
2X - 11,5X
515
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-0515
Femtosecond
2X - 11,5X
800
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-0800
Femtosecond
2X - 11X
343
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-11-0343
Nd:YAG
1.5X - 4X
1064
12
16
28
95 -115
M27x1
6-BE-sTx1.5-4-1064
Nd:YAG
1.5X - 4X
532
12
16
28
95 -115
M27x1
6-BE-sTx1.5-4-0532
Nd:YAG
1.5X - 4X
355
12
16
28
95 -115
M27x1
6-BE-sTx1.5-4-0355
Nd:YAG
5X - 8X
1064
12
16
28
95 -115
M27x1
6-BE-sTx5-8-1064
Nd:YAG
5X - 8X
532
12
16
28
95 -115
M27x1
6-BE-sTx5-8-0532
Nd:YAG
5X - 8X
355
12
16
28
95 -115
M27x1
6-BE-sTx5-8-0355
Nd:YAG
2X - 8X
1064
6
25
20 - 45
100 - 120
M20x1
6-BE-sTx2-8-1064
Nd:YAG
2X - 8X
355
6
25
20 - 45
100 - 120
M20x1
6-BE-sTx2-8-0355
Nd:YAG
2X - 8X
1064
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-1064
Nd:YAG
2X - 8X
532
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-0532
Nd:YAG
2X - 8X
355
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-0355
Nd:YAG
1.5X - 5X
1064
8
30
45
130
M27x1
6-BE-Tx1,5-5-1064
Nd:YAG
1.5X - 5X
532
8
30
45
130
M27x1
6-BE-Tx1,5-5-0532
Nd:YAG
1.5X - 5X
355
8
30
45
130
M27x1
6-BE-Tx1,5-5-0355
Nd:YAG
3X - 9X
266
11
36
45 - 50
130 - 145
M27x1
6-BE-Tx2-8-0266
Nd:YAG
1X - 8X
1064
7
40
60
148
M27x1
6-BE-Tx1-8-1064
Nd:YAG
1X - 8X
532
7
40
60
148
M27x1
6-BE-Tx1-8-0532
Nd:YAG
1X - 8X
355
7
40
60
148
M27x1
6-BE-Tx1-8-0355
Nd:YAG
2X - 8X
532
6
25
20 - 45
100 - 120
M20x1
6-BE-sTx2-8-0532



Wavelength, nm
Magnification
Coatings
Product ID
1010 – 1090
2x
Dielectric
6-RBE-Tx2-10-90
1010 – 1090
4x
Dielectric
6-RBE-Tx4-10-90
600-1200
2x
Metallic
6-RBE-Tx2-S
600-1200
4x
Metallic
6-RBE-Tx4-S
750 – 850
2x
Dielectric
6-RBE-Tx2-75-85
750 – 850
4x
Dielectric
6-RBE-Tx4-75-85



Wavelength, nm
Lens material
Product ID
510-540
BK7
6-MBE-2
340 - 360
UVFS
6-MBE-3
1020 - 1070
BK7
6-MBE-1














玻色智能科技有限公司光谱仪专家
玻色智能科技有限公司    Boson Technology Co., LTD
上海: (021)3353-0926, 3353-0928   北京: (010)8217-0506
广州: (020)3630-8320   武汉: 139-1733-4172
全国销售服务热线:4006-171751   Email: info@bosontech.com.cn
www.BosonTech.com.cn    2008-2017 All Rights Reserved!
