PLE Mapping激发光谱成像

韩国DongWoo Optron是一家专业生产光谱仪的企业,结合光谱仪,宽带光源,激光器,样品室,显微镜,CCD探测器,PMT探测器,斩波器和锁相放大器等,生产了一系列的光谱分析系统,包括拉曼光谱仪,微区拉曼光谱仪,共聚焦拉曼光谱仪,PL荧光光谱仪,EL电致发光光谱仪,ATR吸收反射透射光谱仪,PLE激发光谱成像,TCSPC时间相关单光子计数等,并可以按照客户要求,将这些系统组合在一起,形成多种多样的测量系统。



Macro PLE Raman PL Measurement System

PLE Mapping激发光谱成像

PLEMapping激发光谱成像

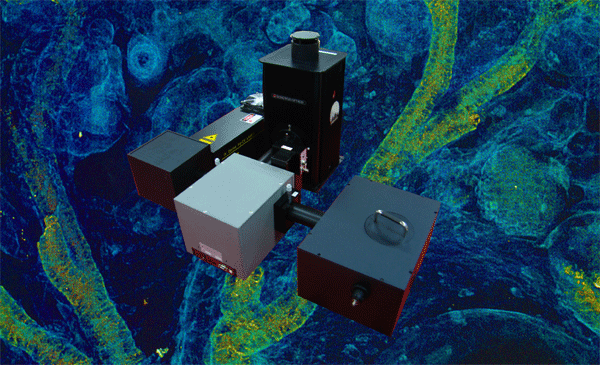

(UV / VIS / NIR) Macro PLE + Raman + PL Measurement System

1.Excitation Laser Source Options (typical): please, specify a desired laser wavelngth suitable to your spectrum (e.g. UV / VIS / NIR)
A.LDM830100CWA 830nm Solid State Laser
- Output power: 100mW
- Mode: TEM00
- Beam diameter: 1.25mm +/- 10%
- Beam Quality M2: <1.2
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <0.5% h
- Noise 0Hz-100MHz: <3.5% peak to peak
- Supply voltage: 85-245Vdc, 50/60Hz
- Features: optional computer controlled power, safety-Interlock

B. FKL532.50.CWA.L 532nm Solid State Laser
- Output power: 50mW
- Mode: TEM00
- Beam diameter: 1.0mm +/- 10%
- Beam Quality M2: <1.3
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <3.5% h
- Noise 0Hz-100MHz: <3.5$ peak to peak
- Supply voltage: 24Vdc, 2Amp
- Features: computer controlled power, safety-Interlock, LCD working hours display remote connector
- PC interface: RS232

C. IK3501R-G, 325nm HeCd Laser
- Output power : 50mW
- Air cooled TEM00 mode 1.2mm beam dia
- 0.5mrad beam divergence
- Includes power supply

D. Other lasers wavelength(s) (e.g. 266nm, 488nm, 405nm, 514nm, 785nm) are also available


2. Excitation Light Source:
A. DL450-XE 450W Xe Arc Lamp
- 450W Xe lamp with vertical type lamp housing
- Spectral range: 260-2000nm, Ozone free lamp
- 190-2000nm Ozone generation available
- Collimating lens (35mm dia.)
- LPS-450-500 current controlled lamp power supply and 20kV ignitor
- All necessary cables


3. SCP200 Macro Sample Chamber
- 40mm dia. FusedSilica PL/CX lens
- Beam diverting mirror
- Variable ND filter
- Bandpass filter (3nm FWHM for three laser sources)
- 10 mm aperature beam dump, raman edge filter.( for three laser source)
- Sample holder
- X-axis rack and pinion dovetail stage for focusing


4. MOSF-6 Motorized Order Sorting Filter Wheel Assembly
- 6 holes filter wheel w/3 cut-off filters (please specify)
- Standard order sorting filters: 400nm, 500nm, 600nm


5. MonoRa 324i Monochromator
- Stepping motor scanning system with 32-bit microprocessor control
- Power supply and Monochromator Instruction manual included
- Monoscan basic control software included
- Resolution: 0.09nm @ 435.8 nm (1200gr/mm grating) 10 um slit
- Focal length: 320mm
- Optical path: Czerny-Turner type, Imaging Spectrograph by Toroidal Mirrors.
- Aperture: f/4.2,
- Grating Turret: dual-grating (68 mm x 68 mm) or triple turret
- Interface: RS232 & USB Standard
- Accuracy: +/- 0.2nm
- Repeatability: +/- 0.04nm
- Drive-step size: 0.0025 nm with 1200gr/mm
- Dispersion: 2.5nm/mm
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Exit selection diverter mirror assembly for exit ports
- Micro adjustable slit assembly for entrance and exit ports
0 to 5mm(10micrometer increment/decrement unit)
- 32 bit control board
- Gratings:
1) 3-1200-250H, 1200G/mm, 300nm blaze, Holographic Grating
190-800nm Optimal Wavelength Range, Al+MgF2 coating
2) 2-1200-700H, 1200G/mm, 700nm blaze, Holographic Grating
400-1200nm Optimal Wavelength Range, Al+MgF2 coating


6. SC100A Macro Sample Chamber with IN/OUT Mount
- 30mm dia. Fused Silica lens
- Biconvex, 3pcs included
- Shortwave pass filter
- 200-500nm (exciting source range)
- Motorized Rotation sample holder for angle scan with 0.1 degree resolution


7. MonoRa324i Monochromator
- Adjustable side entrance & exit slits, front exit port with flange for multichannel detector
- Beam diverter mirror (1 entrance and 2 exits)
- Resolution: 0.09nm @ 435.8 nm (1200gr/mm grating) 10um slits
- Focal length: 320mm,
- Optical path: Czerny-Turner type Imaging Spectrograph by Toroidal Mirrors.
- Aperture: f/4.2
- Grating Turret: dual-grating (68 mm x 68 mm) or triple turret, interchangeable optional
- Interface: RS232 & USB Standard,
- Accuracy: +/- 0.2nm
- Repeatability: +/- 0.04nm
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Exit selection diverter mirror assembly for exit ports
- Micro adjustable slit assembly for entrance and exit ports 0 to 5mm (10micrometer increment/decrement)
- 32 bit control board
- Gratings



Macro PL PLE Measurement System with Cryostat

PLE Mapping激发光谱成像

PLE Mapping激发光谱成像

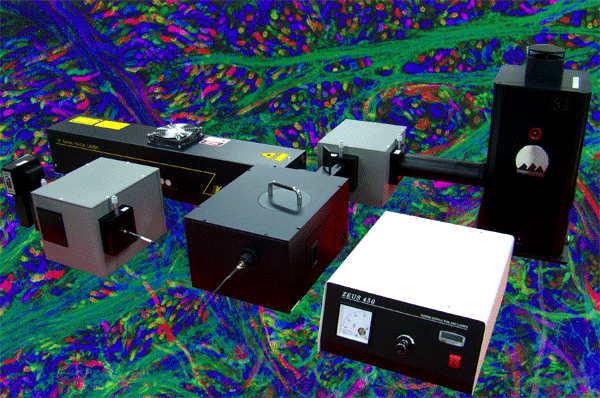

(UV / VIS / NIR) Macro PL + PLE Measurement System with Cryostat
1.Excitation Laser Source Options (typical): please, specify a desired laser wavelngth suitable to your spectrum (e.g. UV / VIS / NIR)
A.LDM830100CWA 830nm Solid State Laser
- Output power: 100mW
- Mode: TEM00
- Beam diameter: 1.25mm +/- 10%
- Beam Quality M2: <1.2
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <0.5% h
- Noise 0Hz-100MHz: <3.5% peak to peak
- Supply voltage: 85-245Vdc, 50/60Hz
- Features: optional computer controlled power, safety-Interlock

B. FKL532.50.CWA.L 532nm Solid State Laser
- Output power: 50mW
- Mode: TEM00
- Beam diameter: 1.0mm +/- 10%
- Beam Quality M2: <1.3
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <3.5% h
- Noise 0Hz-100MHz: <3.5$ peak to peak
- Supply voltage: 24Vdc, 2Amp
- Features: computer controlled power, safety-Interlock, LCD working hours display remote connector
- PC interface: RS232

C. IK3501R-G, 325nm HeCd Laser
- Output power : 50mW
- Air cooled TEM00 mode 1.2mm beam dia
- 0.5mrad beam divergence
- Includes power supply

D. Other lasers wavelength(s) (e.g. 266nm, 488nm, 405nm, 514nm, 785nm) are also available

2. Excitation Light Source:
A. DL450-XE 450W Xe Arc Lamp
- 450W Xe lamp with vertical type lamp housing
- Spectral range: 260-2000nm, Ozone free lamp
- 190-2000nm Ozone generation available
- Collimating lens (35mm dia.)
- LPS-450-500 current controlled lamp power supply and 20kV ignitor
- All necessary cables

3. MonoRa151i Monochromator
- Adjustable entrance and exit slits, and front optical path
- Resolution: 0.2nm @ 435.8nm (1200gr/mm grating) 10 um slits
- Focal length: 150mm
- Optical path: Czerny-Turner type, Imaging Spectrograph by Toroidal Mirrors
- Aperture: f/4.3
- Grating Turret: dual-grating (32 mm x 32 mm) turret
- Interface: RS232 & USB standard
- Accuracy: +/- 0.25nm
- Repeatability: +/- 0.04nm
- Drive-step size: 0.005 nm with 1200gr/mm
- Dispersion : 5nm/mm
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Micro adjustable slit assembly for entrance and exit ports
0 to 5mm(10micrometer increment/decrement unit)
- 32 bit control board
A) 1-120-500, Ruled Grating, 32x32mm, 1200 G/mm with 500 blaze,330–900nm Optimal Wavelength Range

4. SCP300 PL Sample Chamber
- 50mm dia., Fused silica PL/CX lens
- Beam Splitter
- ND filter (4 from OD 1.3 to 3.0 ,200-700 nm range)
- Bandpass & Longpass Filtera ( transmission: 368.5 – 820.6 nm)
- Beam diverter for laser beam path

5. MonoRa511i Monochromator
- Adjustable side entrance & exit slits (1 entrance and 2 exits)
- Beam diverting mirror
- Resolution: 0.05nm @ 435.8 nm (1200gr/mm grating), 10 um slits
- Focal length: 500mm
- Optical path: Czerny-Turner type Imaging Spectrograph by Toroidal Mirrors
- Aperture : f/6.5
- Grating Turret: dual-grating (68 mm x 68 mm) or triple turret
- Interface: RS232 & USB Standard
- Accuracy: +/- 0.2nm
- Repeatability: +/- 0.04nm
- Drive-step size: 0.0025 nm with 1200gr/mm
- Dispersion: 1.7nm/m
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Exit selection diverter mirror assembly for exit ports
- Micro adjustable slit assembly for entrance and exit ports
0 to 5mm(10micrometer increment/decrement unit)
- 32 bit control board
- Gratings:
A. 3-120-500 Ruled Grating, 68x68mm, 1800gr/mm, 400nm blaze, 330-850nm Optimum Wavelength Range
B. 3-120-850 90led Grating, 68×68mm, 1200gr/mm, 850nm blaze, 500-1400nm Optimum Wavelength Range
- Power supply and Monochromator Instruction manual included

6. M420 Dual Phase Lock-in Amplifier
- Frequency: 10Hz to 100kHz
- Sensitivity: 3uV to 1V(for 1V output) switched in 1, 3, 10 steps
- Gain accuracy: 1%
- Dynamic range: 60dB
- Acquisition time: 10s Max

7. M300CD Digital Display Chopper
- Consists of 300CD chopper control unit incorporating 5 digit
- Display of actual chopping frequency
- Switch selectable 1.0or 0.1Hz resolution. 5Hz to 20KHz.
- Chopping head, cable and 4 chopping disks included



Macro ATR Raman PL Measurement System

PLEMapping激发光谱成像

PLEMapping激发光谱成像

(UV / VIS / NIR) Macro ATR + Raman + PL Measurement System

1.Excitation Laser Source Options (typical): please, specify a desired laser wavelngth suitable to your spectrum (e.g. UV / VIS / NIR)
A.LDM830100CWA 830nm Solid State Laser
- Output power: 100mW
- Mode: TEM00
- Beam diameter: 1.25mm +/- 10%
- Beam Quality M2: <1.2
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <0.5% h
- Noise 0Hz-100MHz: <3.5% peak to peak
- Supply voltage: 85-245Vdc, 50/60Hz
- Features: optional computer controlled power, safety-Interlock

B. FKL532.50.CWA.L 532nm Solid State Laser
- Output power: 50mW
- Mode: TEM00
- Beam diameter: 1.0mm +/- 10%
- Beam Quality M2: <1.3
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <3.5% h
- Noise 0Hz-100MHz: <3.5$ peak to peak
- Supply voltage: 24Vdc, 2Amp
- Features: computer controlled power, safety-Interlock, LCD working hours display remote connector
- PC interface: RS232

C. IK3501R-G, 325nm HeCd Laser
- Output power : 50mW
- Air cooled TEM00 mode 1.2mm beam dia
- 0.5mrad beam divergence
- Includes power supply

D. Other lasers wavelength(s) (e.g. 266nm, 488nm, 405nm, 514nm, 785nm) are also available

2. Excitation Light Source:
A. DL450-XE 450W Xe Arc Lamp
- 450W Xe lamp with vertical type lamp housing
- Spectral range: 260-2000nm, Ozone free lamp
- 190-2000nm Ozone generation available
- Collimating lens (35mm dia.)
- LPS-450-500 current controlled lamp power supply and 20kV ignitor
- All necessary cables

3. SCP200 Macro Sample Chamber
- 40mm dia. FusedSilica PL/CX lens
- Beam diverting mirror
- Variable ND filter
- Bandpass filter (3nm FWHM for three laser sources)
- 10 mm aperature beam dump, raman edge filter.( for three laser source)
- Sample holder
- X-axis rack and pinion dovetail stage for focusing

4. MOSF-6 Motorized Order Sorting Filter Wheel Assembly
- 6 holes filter wheel w/3 cut-off filters (please specify)
- Standard order sorting filters: 400nm, 500nm, 600nm

5. MonoRa 324i Monochromator

- Stepping motor scanning system with 32-bit microprocessor control
- Power supply and Monochromator Instruction manual included
- Monoscan basic control software included
- Resolution: 0.09nm @ 435.8 nm (1200gr/mm grating) 10 um slit
- Focal length: 320mm
- Optical path: Czerny-Turner type, Imaging Spectrograph by Toroidal Mirrors.
- Aperture: f/4.2,
- Grating Turret: dual-grating (68 mm x 68 mm) or triple turret
- Interface: RS232 & USB Standard
- Accuracy: +/- 0.2nm
- Repeatability: +/- 0.04nm
- Drive-step size: 0.0025 nm with 1200gr/mm
- Dispersion: 2.5nm/mm
- Focal-plane size: 26mm wide x 14mm high
- Fixed diverter mirror assembly for entrance side port
- Exit selection diverter mirror assembly for exit ports
- Micro adjustable slit assembly for entrance and exit ports
0 to 5mm(10micrometer increment/decrement unit)
- 32 bit control board
- Gratings:
1) 3-1200-250H, 1200G/mm, 300nm blaze, Holographic Grating, 190-800nm Optimal Wavelength Range, Al+MgF2 coating
2) 2-1200-700H, 1200G/mm, 700nm blaze, Holographic Grating, 400-1200nm Optimal Wavelength Range, Al+MgF2 coating

6. SC100A Macro Sample Chamber with IN/OUT Mount
- 30mm dia. Fused Silica lens
- Biconvex, 3pcs included
- Shortwave pass filter
- 200-500nm (exciting source range)
- Motorized Rotation sample holder for angle scan with 0.1 degree resolution

7. DV401A-BV CCD Detector
- Sensor Option: Back illuminated AR coated for optimal performance in VIS
- Active Pixels: 1024x127
- Pixel Size: 26x26
- Image Area: 26.6x3.3
- PC Interface: USB 2.0
- Peak QE: 95% @ 600 nm, 20% @ 350 /900 nm
- Wavelength range: 200- 1000 nm
- Min Operating Temp: -75
- Pixel Well Depth: 1000000
- FVB: 75
- Read Noise: 4
- Read-out Rate: 0.1
- Dark Current @ -70: 0.02
- P25 Shutter & SD166 Shutter Driver
- Andor SOLIS application program

8. S-050(or025)-TE2-H TE cooled Si Photodiode
- 200-1100 nm 2.5 mm or 5 mm dia.
- Included TE cooled power supply

9. PBS-020-TE2 two Stage TEC PbS Detector
- Operating Temperature: 22 to –30 deg C by two stage TEC





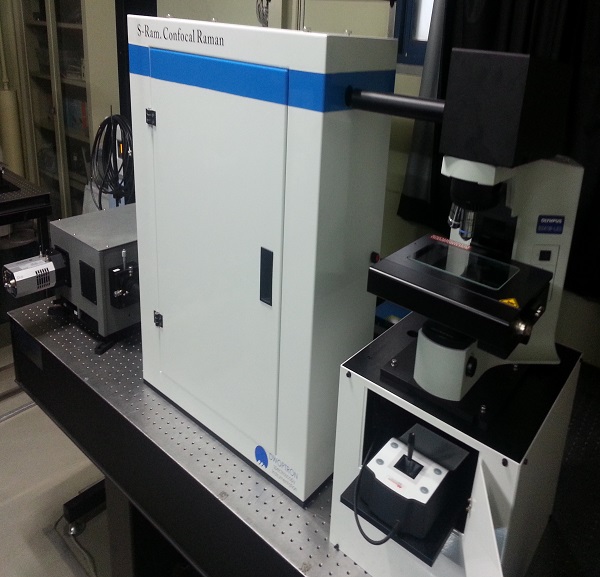

Confocal Raman Mappging System共聚焦拉曼系统

共聚焦拉曼系统

共聚焦拉曼系统

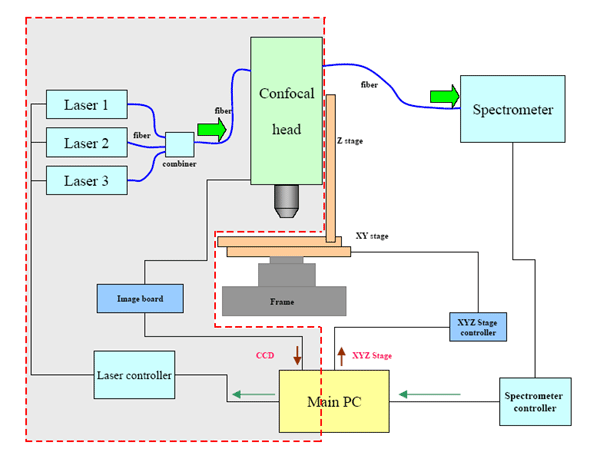

(UV / VIS / NIR) Micro Confocal Raman Mapping System with Eyepiece

1. Excitation Laser Source Options (typical): please, specify a desired laser wavelngth suitable to your spectrum (e.g. UV / VIS / NIR)

A.LDM830100CWA 830nm Solid State Laser
- Output power: 100mW
- Mode: TEM00
- Beam diameter: 1.25mm +/- 10%
- Beam Quality M2: <1.2
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <0.5% h
- Noise 0Hz-100MHz: <3.5% peak to peak
- Supply voltage: 85-245Vdc, 50/60Hz
- Features: optional computer controlled power, safety-Interlock,

B. FKL532.50.CWA.L 532nm Solid State Laser
- Output power: 50mW
- Mode: TEM00
- Beam diameter: 1.0mm +/- 10%
- Beam Quality M2: <1.3
- Beam Ellypticity: <1.1:1 (5M)
- Polarization: >5:1 vertical, >100:1 on request
- Power stability: <3.5% h
- Noise 0Hz-100MHz: <3.5$ peak to peak
- Supply voltage: 24Vdc, 2Amp
- Features: computer controlled power, safety-Interlock, LCD working hours display remote connector
- PC interface: RS232

C. IK3501R-G, 325nm HeCd Laser
- Output power : 50mW
- Air cooled TEM00 mode 1.2mm beam dia
- 0.5mrad beam divergence
- Includes power supply

D. Other lasers wavelength(s) (e.g. 266nm, 488nm, 405nm, 514nm, 785nm) are also available

2. Confocal Raman Head Module
- Operating wavelength range: 266-830 nm
- Beam spot resolution: approx. 1um @ 100x Objective lens @TEMoo Mode
- Fine Z scanning range: 400 um(PZT closed – loop)
- Motorized XYZ stage for Mapping
- 10x NUV objective lens, wavelength range: 325-500nm
- Working Distance: 15mm WD, 20mm EFL
- 40x NUV objective lens, wavelength range: 325-500nm
- Working Distance: 1mm WD, 5mm EFL
- Includes sample holder & control software
- Fiber couple set
- Driver board for scanning module
- Precision pinhole
- Pinhole alignment mechanism
- Fiber alignment mechanism
- 640x480 CCD camera for Sample Image & Monitoring system
- Wide field image optics
- Wide range refractive optics
- Optical Path & alignment adjustable function
- Excitation/emission filter (Dichroic filter /Raman Edge filter set for 325 nm/532/830 laser source)
- Koller High Brightness light source & optics
- Linear power supply
- Real time video signal generation board
- High speed output board
- Shielded cable set

3. MonoRa 512i Monochromator
- 500mm focal length
- Multiple-port Input & Output Ports
- Adjustable side entrance & exit slits, front exit port with flange for multichannel detector and beam diverter mirror (1 entrance and 2 exits)
- Resolution: 0.05nm @435.8 nm (1200gr/mm grating), 10 um slits
0.12nm 1200gr/mm grating 0.08 nm with 1800 gr/mm /10um slit/1024 pixel CCD
- Raman shift from 94Cm-1 to 1345Cm-1 with 1200gr/mm @532nm with 41 nm coverage
- Raman shift from from 90Cm-1 to 3400Cm-1 with 1200gr/mm @325nm with 41 nm coverage
- Raman shift system resolution :1.2 cm-1 resolution at 1800gr/mm @ 830 nm source
- Optical path: f/6.5 imaging Czerny-Turner spectrometer
- Interface: USB & RS232 Standard
- Focal-plane size: 26mm wide x 14mm height
- Fixed entrance beam diverter mirror
- Micrometer controlled adjustable slit assembly for entrance
0 to 5mm(10micrometer increment/decrement unit)
- Gratings:
1) 3-240-H250Holographic Grating 68x68mm, 2400G/mm, 250nm blaze, 190-800nm Optimal Wavelength Range
2) 3-600-500, Ruled Grating 68×68mm, 600G/mm, 500nm blaze, 330-900nm Optimal Wavelength Range
3) 3-180-500Ruled Grating 68x68mm, 1800G/mm, 500nm blaze, 330-900nm Optimal Wavelength Range
- Fiber signal cable and manual stage for align

4. High performance TE cooled CCD Detector
- Back-illuminated type CCD
- Pixel format: 1024x256 pixels, 26um pixel size & 26.7×6.7mm active area
- Dark Current: 0.001e- /pix/sec @-100C
- Minimum operating Temp: -100℃ /TE cooled, water circulator
- Spectral Range: 200-1050nm & >90% QE at peak
- Includes 16bits, 100KHz, USB interface
- Andor Solis Appplication Software
- P25 shutter and SD-166 shutter driver

5. Data Acquisition & Processor
- 17” LCD Monitor
- Windows XP Operating System (English)



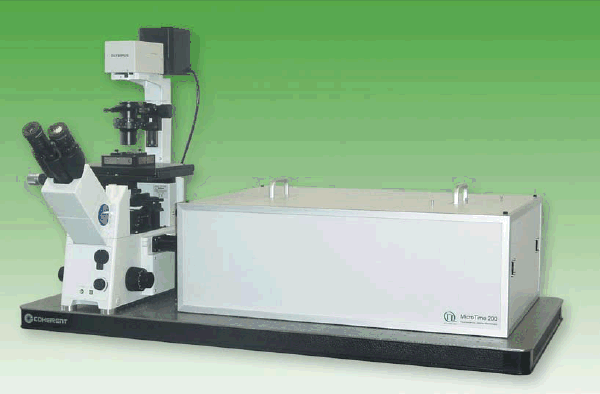

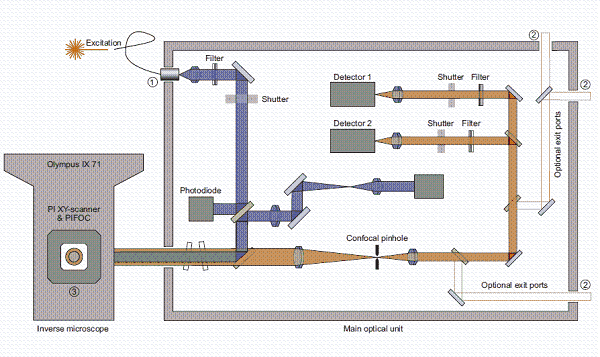

MicroTime 200 TCSPC时间相关单光子计数

TCSPC时间相关单光子计数

TCSPC时间相关单光子计数

Specifications

Excitation (optional)
Light source Picosecond Diode Lasers
Wavelengths 375 - 485 nm, 530 nm, 635 - 900 nm
Repetition rate Up to 40 MHz (80 MHz optional)
Scanning (optional) by Physik Instrumente
Controller E-710 digital PZT controller with special PicoQuant modification
2D scanning stage P-733 piezo-positioner
Range / resolution 80 um x 80 um range with less than 10 nm resolution
Z scanning P-721 PIFOC objective nano-positioner
Range / resolution 80 μm range with less than 10 nm resolution
Objectives
Standard PL 20x3 PlanAchromat, NA 0.4, air spaced, 400 - 750 nm
PL 40x PlanAchromat, NA 0.65, air spaced, 400 - 750 nm
UPLFL 100x PlanFluorit, NA 1.3, oil immersion, 350 - 800 nm
Optional Water or oil immersion, apochromatic correction, air spaced, IR/UV-enhanced or long working distance objectives
Detectors
Type PMA Photomultiplier assembly 185 - 820 nm < 500 cps
Data Acquisition
Type PicoHarp 300 HydraHarp 400
Time resolution (bin width) 4 ps 1 ps
Dead time < 90 ns < 80 ns
Discriminator level, zero cross adjust Software adjustable
Collection time 1 ms to 10 h
Software features
General concept Use of versatile TTTR file format for data acquisition, data archiving in workspace, time gating for all methods, separation of up to four detector signals
Point measurements Data conversion to: MCS trace, FCS calculation and fitting, TCSPC histogram, on/off-state histogram, burst size analysis, (PIE-)FRET histogram, Photon counting histogram, Lifetime histogram
Fluorescence Lifetime Imaging
(FLIM)
Data conversion to: fluorescence intensity images, fluorescence lifetime images, time gated analysis, TCSPC histogram for region of interest





玻色智能科技有限公司光谱仪专家
上海玻色智能科技有限公司
上海: (021)3353-0926, 3353-0928   北京: (010)8217-0506
广州: (020)3630-8320   武汉: 139-1733-4172
全国销售服务热线:4006-171751   Email: info@bosontech.com.cn
www.BosonTech.com.cn    2008-2017 All Rights Reserved!
