Apogee CCD,Alta和Ascent

Apogee Imaging Systems(AIS) CCD, Alta and Ascent

美国Apogee Imaging System (AIS)公司专业生产CCD产品,产品分为几大系列,主要是ALta和Ascent系列的CCD为知名。CCD被广泛应用于天文学,生命科学和光谱仪领域。



Alta CCD系列--更快的读出速度

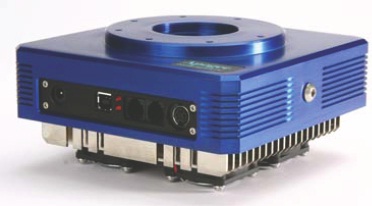

Alta CCD

  • 1 to 8 MHz 16-Bit digitization
  • 32 MByte camera memory
  • Field upgradeable firmware
  • USB 2.0 interface
  • Resolution from 512 x 512 to more than 39 megapixels
  • Wide variety of CCD architectures
  • Free / open source driver for MicroManager / Image J software
  • No plug in cards or external controllers
  • Runs from single 12V supply
  • Subarray readout and fast sequencing modes
  • 32/64 bit ActiveX drivers included with every system
  • Programmable cooling to 65C below ambient
  • General purpose programmable I/O port
  • Adjustable fan speed for low/zero vibration
  • Programmable status indicators
  • AR coated fused silica windows
  • RBI pre-flash
  • Maintenance free chambers - No desiccant plugs required.
  • Liquid cooling option
  • Precision locking filter wheels optional



Camera
Model
HC Camera
Model
CCD
Pixel Size (u)
Array Size (pixels)
Mega Pixels
X (mm)
Y (mm)
Area (mm2)
 Back-Illuminated
F42
U42HC E2V CCD42-40
13.5
2048
2048
4.2
27.6
27.6
764
F42-UV
U42-UVHC E2V CCD42-40 UV
13.5
2048
2048
4.2
27.6
27.6
764
F230
U230HC E2V CCD230-42
15
2048
2048
4.2
30.7
30.7
944
F1109
U1109HC Hamamatsu S10140
12
2048
506
1
24.6
6.1
149
F1009
U1009HC Hamamatsu S10140
12
1024
506
0.5
12.3
6.1
75
F47
U47HC E2V CCD47-10
13
1024
1024
1
13.3
13.3
177
F30
U30HC E2V CCD30-11
26
1024
256
0.26
26.6
6.7
177
F77
U77HC E2V CCD77-00
24
512
512
0.26
12.3
12.3
151
F1108
U1009HC Hamamatsu S10140
12
2048
250
0.5
24.6
3
73.7
F1008
U1009HC Hamamatsu S10140
12
1024
250
0.26
12.3
6.1
75
F1107
U1107HC Hamamatsu S10140-1107
12
2048
122
0.25
24.6
1.5
36
F1007
U1009HC Hamamatsu S10140
12
1024
122
0.12
12.3
1.46
18
 Front-Illuminated
F39000
U39000HC Kodak KAF-39000
6.8
7216
5412
39
49
36.8
1806
F16
U16HC Kodak KAF-16801E
9
4096
4096
16.7
36.9
36.9
1359
F16M
U16MHC Kodak KAF-16803
9
4096
4096
16.7
38.86
38.86
1359
F9000
U9000HC Kodak KAF-09000
12
3056
3056
9.3
36.7
36.7
1345
F8300
U1009HC Kodak KAF-8300
5.4
3326
2504
8.3
18.6
13.9
259
F9
U9HC Kodak KAF-6303E
9
3072
2048
6.3
27.6
18.4
510
F43
  Kodak KAF-4301
24
2048
2048
4.2
49.1
49.1
2415
F4320
  Kodak KAF-4301
24
2048
2048
4.2
49.1
49.1
2415
F3041
U3041HC Fairchild 3041
15
2048
2048
4.2
30.7
30.7
944
F32
  Kodak KAF-3200ME
6.8
2184
1472
3.2
14.9
10
149
F30-OE
U30-OEHC E2V CCD30-11 OE
26
1024
256
0.26
26.6
6.7
179
F2
  Kodak KAF-1603E/ME
9
1536
1024
1.57
13.8
9.2
127
F6
U6HC Kodak KAF-1001E
24
1024
1024
1
24.6
24.6
604
F1
  Kodak KAF-0402ME
9
768
512
0.39
6.9
4.6
32
F260
  Kodak KAF-0261E
20
512
512
0.26
10.2
10.2
105
 Interline Transfer
F16000
U16000HC Kodak KAI-16000
7.4
4872
3248
15.8
36
24
866
F4000
U4000HC Kodak KAI-4022
7.4
2048
2048
4.2
15.2
15.2
230
F2000
  Kodak KAI-2020
7.4
1600
1200
1.9
11.8
8.9
105





Ascent 相机系列

Ascent相机

  • CCDs up to 29 megapixels
  • 16-bit digitization up to 16 MHz throughput
  • Dual channel CCD support
  • Video focus mode
  • USB 2.0 interface: no plug in cards or external controllers
  • Programmable, intelligent cooling to 35 celsius below ambient
  • Binning up to 8 Horizontal x CCD height
  • Subarray readout and fast sequencing modes
  • Programmable offset and gain
  • External triggering and strobe controls
  • ActiveX drivers included with every system
  • Field upgradeable firmware
  • Fused silica window
  • Optional 6-position 1" or 8-position 1.25" filter wheels
  • Optional C-mount, Nikon F-mount, or 2" slip fit adapter
  • Single 6V supply
  • Compact enclosure: 23 oz. (0.65 kg)
  • Programmable status indicators
Model
CCD
Array
Pixels
Pixel size (microns)
CCD Size (mm)
Area (mm2)
Diagonal (mm)
Video size (")
A29050 KAI-29050
6576 z 4384
28.8M
5.5
36 x 24
872
43.5
2.7
A16000 KAI-16000
4872 x 3248
15.8M
7.4
36 x 24
866.5
43.3
2.7
A8050 KAI-8050
3296 x 2472
8.1M
5.5
18.1 x 13.6
246.5
22.7
1.42
A4000 KAI-4022
2048 x 2048
4.2M
7.4
15.2 x 15.2
229.7
21.4
1.34
A4050 KAI-4050
2336 x 1752
4.2M
5.5
11.3 x 11.3
126.9
15.9
1
A2150 KAI-2150
1920 x 1080
2.1M
5.5
10.6 x 5.9
62.7
12.1
0.76
A2000 KAI-2020
1600 x 1200
1.9M
7.4
11.8 x 8.9
105.1
14.8
0.93
A2050 KAI-2050
1600 x 1200
1.9M
5.5
8.8 x 6.6
58.1
11
0.69
A1050 KAI-1050
1024 x 1024
1.1M
5.5
5.6 x 5.6
34.8
8.3
0.52
A285 ICX285AL
1360 x 1024
1.4M
6.45
8.8 x 6.6
57.9
11
0.69
A205 ICX205
1360 x 1024
1.4M
4.65
6.3 x 4.8
30.1
7.9
0.49
A340 KAI-0340
684 x 484
1.4M
7.4
4.8 x 3.6
17.2
6
0.37



Apogee CCD产品目录下载



Apogee Imaging System (AIG) CCD产品在天文学的应用
Apogee Imaging System (AIG) CCD产品在生命科学的应用
Apogee Imaging System (AIG) CCD产品在光谱学的应用



CCD基本知识

Quantum Efficiency,量子效率

Blooming vs. Anti-Blooming,溢出效应

Pixel Binning,像素面源

System Gain,系统增益

Camera Test Methods,相机测试模式

Digitization,数字化

Correlated Double Sampling,相关双采样

Readout Noise,读出噪音

Dark Count,暗噪音

System Throughput,系统输出

Dynamic Range,动态范围

Charge Transfer Efficiency,电荷转移效率

Telescope Optics & Pixel Size,像素尺寸
