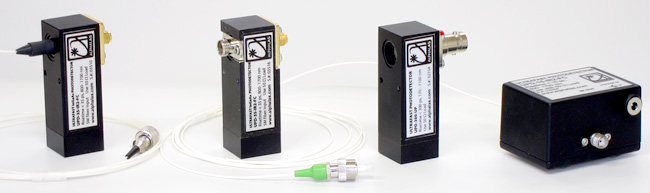

ALPHLAS UPD系列自由空间入射超快光电探测器系列适合用于从直流到25GHz的空间光波形的测量。可提供检测短为15ps上升时间的光脉冲信号，覆盖从170至2600nm的光谱范围。 所有探测器都由紧凑坚实的过氧极化铝外壳封装，供电方式可以采用电池或外接电源。 是可提供从170到1100 nm扩展到紫外光谱范围高速硅探测器商业产品。 另一种类型独特的紫外线敏感的InGaAs 探测器，可用于检测从350到1700纳米范围内的激光脉冲，因此具有宽的光谱范围和高的响应速度。完美的阻抗匹配和先进的微波技术，确保测量的脉冲波形的保真度。用户可以自由使用50Ω的匹配电阻，进行高响应速度的检测。或为获得大的信号响应曲线，加入高阻抗负载。保证了UPD产品为不同的应用提供大的灵活性。 结合BBA系列宽带高增益放大器，高速光探测器对于取代昂贵和繁琐的雪崩光电二极管是一个极好的选择。UPD的系列高速光电探测器是激光和光子学研究的不可缺少的工具。



UPD Series
Model Rise Time (ps) Band- width (GHz) Spectral Range (nm) Quantum Efficiency
@ Peak		 Sensitive Area (Dia. μm / mm2) Noise Equiv. Power (W/√Hz) Dark Current (nA) Material Optical Input / Window Type 1) RF
Output Connec- tor Type
UPD-15-IR2-FC < 15 > 25 800 - 1700 75% Fiber, 9 um 1.0 × 10-15 0.1 InGaAs Fiber w. FC/APC SMA
UPD-30-VSG-P < 30 > 10 320 - 900 40% 200×200 / 0.04 3.0 × 10-15 0.1 GaAs Polished, glass SMA
UPD-35-IR2-P < 35 > 10 800 -1700 80% 55 / 0.0024 1.0 × 10-15 0.3 InGaAs Polished, glass SMA
UPD-35-IR2-D < 35 > 10 800 -1700 80% 55 / 0.0024 1.0 × 10-15 0.3 InGaAs Diffuse, quartz SMA
UPD-35-IR2-FR < 35 > 10 800 -1700 80% 55 / 0.0024 1.0 × 10-15 0.3 InGaAs FC/PC receptacle SMA
UPD-35-IR2-FC < 35 > 10 800 -1700 80% Fiber, 9 μm 1.0 × 10-15 0.3 InGaAs Fiber w. FC/APC SMA
UPD-35-UVIR-P < 35 > 10 350 -1700 80% 55 / 0.0024 1.0 × 10-15 0.3 InGaAs Polished, MgF2 SMA
UPD-35-UVIR-D < 35 > 10 350 -1700 80% 55 / 0.0024 1.0 × 10-15 0.3 InGaAs Diffuse, quartz SMA
UPD-40-VSI-P < 40 > 8.5 500 - 1690 40% 200×200 / 0.04 3.0 × 10-10 5000 InGaAs Polished, glass SMA
UPD-40-IR2-P < 40 > 8.5 800 - 1700 80% 60 / 0.0028 1.1 × 10-15 0.5 InGaAs Polished, glass SMA
UPD-40-IR2-D < 40 > 8.5 800 - 1700 80% 60 / 0.0028 1.1 × 10-15 0.5 InGaAs Diffuse, quartz SMA
UPD-40-IR2-FR < 40 > 8.5 800 - 1700 80% 60 / 0.0028 1.1 × 10-15 0.5 InGaAs FC/PC receptacle SMA
UPD-40-IR2-FC < 40 > 8.5 800 - 1700 80% Fiber, 9 μm 1.1 × 10-15 0.5 InGaAs Fiber w. FC/APC SMA
UPD-40-UVIR-P < 40 > 8.5 350 - 1700 80% 60 / 0.0028 1.1 × 10-15 0.5 InGaAs Polished, MgF2 SMA
UPD-40-UVIR-D < 40 > 8.5 350 - 1700 80% 60 / 0.0028 1.1 × 10-15 0.5 InGaAs Diffuse, quartz SMA
UPD-50-SP < 50 > 7.0 320 - 1100 45% 100 / 0.0079 1.2 × 10-15 0.001 Si Polished, glass SMA
UPD-50-SD < 50 > 7.0 320 - 1100 45% 100 / 0.0079 1.2 × 10-15 0.001 Si Diffuse, quartz SMA
UPD-50-UP < 50 > 7.0 170 - 1100 45% 100 / 0.0079 1.2 × 10-15 0.001 Si Polished, MgF2 SMA
UPD-50-UD < 50 > 7.0 170 - 1100 45% 100 / 0.0079 1.2 × 10-15 0.001 Si Diffuse, quartz SMA
UPD-70-IR2-P < 70 > 5.0 800 - 1700 80% 80 / 0.005 2.0 × 10-15 0.8 InGaAs Polished, glass SMA
UPD-70-IR2-D < 70 > 5.0 800 - 1700 80% 80 / 0.005 2.0 × 10-15 0.8 InGaAs Diffuse, quartz SMA
UPD-70-IR2-FR < 70 > 5.0 800 - 1700 80% 80 / 0.005 2.0 × 10-15 0.8 InGaAs FC/PC receptacle SMA
UPD-70-IR2-FC < 70 > 5.0 800 - 1700 80% Fiber, 9 μm 2.0 × 10-15 0.8 InGaAs Fiber w. FC/APC SMA
UPD-70-UVIR-P < 70 > 5.0 350 - 1700 80% 80 / 0.005 2.0 × 10-15 0.8 InGaAs Polished, MgF2 SMA
UPD-70-UVIR-D < 70 > 5.0 350 - 1700 80% 80 / 0.005 2.0 × 10-15 0.8 InGaAs Diffuse, quartz SMA
UPD-100-IR1-P < 100 > 3.0 400 - 2000 80% 80 / 0.005 3.0 × 10-13 700 Ge Polished, glass SMA
UPD-200-SP < 175 > 2.0 320 - 1100 85% 400 / 0.126 1.5 ×10-15 0.001 Si Polished, glass BNC
UPD-200-SD < 175 > 2.0 320 - 1100 85% 400 / 0.126 1.5 ×10-15 0.001 Si Diffuse, quartz BNC
UPD-200-UP < 175 > 2.0 170 - 1100 85% 400 / 0.126 1.5 ×10-15 0.001 Si Polished, MgF2 BNC
UPD-200-UD < 175 > 2.0 170 - 1100 85% 400 / 0.126 1.5 ×10-15 0.001 Si Diffuse, quartz BNC
UPD-300-SP < 300 > 1.0 320 - 1100 90% 600 / 0.283 3.0 ×10-15 0.01 Si Polished, glass BNC
UPD-300-SD < 300 > 1.0 320 - 1100 90% 600 / 0.283 3.0 ×10-15 0.01 Si Diffuse, quartz BNC
UPD-300-UP < 300 > 1.0 170 - 1100 90% 600 / 0.283 3.0 ×10-15 0.01 Si Polished, MgF2 BNC
UPD-300-UD < 300 > 1.0 170 - 1100 90% 600 / 0.283 3.0 ×10-15 0.01 Si Diffuse, quartz BNC
UPD-500-SP < 500 > 0.6 320 - 1100 90% 800 / 0.5 3.5 ×10-15 0.01 Si Polished, glass BNC
UPD-500-SD < 500 > 0.6 320 - 1100 90% 800 / 0.5 3.5 ×10-15 0.01 Si Diffuse, quartz BNC
UPD-500-UP < 500 > 0.6 170 - 1100 90% 800 / 0.5 3.5 ×10-15 0.01 Si Polished, MgF2 BNC
UPD-500-UD < 500 > 0.6 170 - 1100 90% 800 / 0.5 3.5 ×10-15 0.01 Si Diffuse, quartz BNC
UPD-3N-IR2-P < 150 > 0.4 800 - 2100 75% 300 / 0.07 1.5 ×10-13 90 InGaAs Polished, glass BNC
UPD-5N-IR2-P < 200 > 0.3 800 - 2600 70% 300 / 0.07 7.0 ×10-13 2000 InGaAs Polished, glass BNC
UPD-2M-IR2-P < 75000 > 0.004 900 - 1700 80% 2000 / 3.14 4.0 ×10-14 5 InGaAs Polished, glass BNC
UPD-2M-IR2-P- 1TEC < 75000 > 0.004 900 - 1700 75% 2000 / 3.14 1.0 ×10-14 0.3 InGaAs Polished, glass BNC







Laser Diagnostic Tools
Item Part Number Description
Ultrafast Photodetectors: UPD Series
1. UPD-15-IR2-FC NEW! Ultrafast InGaAs Photodetector,
risetime <15 ps, bandwidth >25 GHz,
spectral range 800-1700 nm, 1 m SM fiber, with FC/APC, SMA connector for the RF output. Needs +6 VDC supply. Not compatible with the optional filter holder.
2. UPD-30-VSG-P NEW! Ultrafast GaAs Schottky Photodetector,
risetime <30 ps, bandwidth >10 GHz,
spectral range 320-900 nm, high sensitivity (typ. 0.25 A/W), large sensitive area (0.2x0.2 mm), polished glass window, SMA connector Attention - absolute limits:
CW to pulsed light with pulse width > 1 ns: 5 mW;
Only pulsed, < 1 ns: 50 mW.
Needs +9 VDC supply.
3. UPD-35-IR2-P NEW! Ultrafast InGaAs Photodetector, risetime <35 ps,
bandwidth >10 GHz, spectral range 800-1700 nm, polished glass window, SMA connector for the RF output
4. UPD-35-IR2-D Ultrafast InGaAs Photodetector, risetime <35 ps,
bandwidth >10 GHz, spectral range 800-1700 nm,
crystal quartz diffuse window (recommended for high peak power lasers only), SMA connector for the RF output.
5. UPD-35-IR2-FR NEW! Ultrafast InGaAs Photodetector, risetime <35 ps,
bandwidth >10 GHz, spectral range 800-1700 nm,
SMA receptacle, SMA connector for the RF output. Not compatible with the optional filter holder.
6. UPD-35-IR2-FC NEW! Ultrafast InGaAs Photodetector, risetime <35 ps,
bandwidth >10 GHz, spectral range 800-1700 nm,
with SMF-28 fiber 1m length, with FC/APC, SMA connector for the RF output. Not compatible with the optional filter holder.
7. UPD-35-UVIR-P NEW! Exclusively from ALPHALAS!
Ultrafast InGaAs Photodetector, risetime <35 ps, bandwidth >10 GHz, spectral range 350-1700 nm, polished window MgF2, SMA connector for the RF output.
8. UPD-35-UVIR-D NEW! Exclusively from ALPHALAS!
Ultrafast InGaAs Photodetector, risetime <35 ps, bandwidth >10 GHz, spectral range 350-1700 nm,
crystal quartz diffuse window (recommended for high peak power lasers only), SMA connector for the RF output.
9. UPD-40-VSI-P NEW! Ultrafast InGaAs Schottky Photodetector, risetime <40 ps, bandwidth >8.5 GHz, spectral range 500-1690 nm, high sensitivity (typ. 0.4 A/W), large sensitive area (0.2x0.2 mm), polished glass window, SMA connector for the RF output.
Attention - absolute limits:
CW to pulsed light with pulse width > 1 ns: 2 mW;
Only pulsed, < 1 ns: 10 mW.
10. UPD-40-IR2-P Ultrafast InGaAs Photodetector, risetime <40 ps, bandwidth >8.5 GHz, spectral range 800-1700 nm, polished glass window, SMA connector for the RF output.
11. UPD-40-IR2-D Ultrafast InGaAs Photodetector, risetime <40 ps, bandwidth >8.5 GHz, spectral range 800-1700 nm, crystal quartz diffuse window (recommended for high peak power lasers only), SMA connector for the RF output.
12. UPD-40-IR2-FR NEW! Exclusively from ALPHALAS!
Ultrafast InGaAs Photodetector, risetime <40 ps, bandwidth >8.5 GHz, spectral range 800-1700 nm, SMA receptacle, SMA connector for the RF output. Not compatible with the optional filter holder.
13. UPD-40-IR2-FC NEW! Ultrafast InGaAs Photodetector, risetime <40 ps, bandwidth >8.5 GHz, spectral range 800-1700 nm, with SMF-28 fiber 1m length, with FC/APC, SMA connector for the RF output. Not compatible with the optional filter holder.
14. UPD-40-UVIR-P NEW! Exclusively from ALPHALAS!
Ultrafast InGaAs Photodetector, risetime <40 ps, bandwidth >8.5 GHz, spectral range 350-1700 nm, polished window MgF2, SMA connector for the RF output.
15. UPD-40-UVIR-D NEW! Exclusively from ALPHALAS!
Ultrafast InGaAs Photodetector, risetime <40 ps, bandwidth >8.5 GHz, spectral range 350-1700 nm, crystal quartz diffuse window (recommended for high peak power lasers only), SMA connector for the RF output.
16. UPD-50-SP NEW! Exclusively from ALPHALAS!
Ultrafast Si Photodetector, rise time <50 ps, fall time 50 ps, bandwidth >7.0 GHz, spectral range 320-1100 nm, polished window, SMA connector for the RF output.
17. UPD-50-SD NEW! Exclusively from ALPHALAS!
Ultrafast Si Photodetector, rise time <50 ps, fall time 50 ps, bandwidth >7.0 GHz, spectral range 320-1100 nm, crystal quartz diffuse window (recommended for high peak power lasers only), SMA connector for the RF output.
18. UPD-50-UP NEW! Exclusively from ALPHALAS!
Ultrafast Si Photodetector, rise time <50 ps, fall time 50 ps, bandwidth >7.0 GHz, spectral range 170-1100 nm, polished window MgF2, SMA connector for the RF output.
19. UPD-50-UD NEW! Exclusively from ALPHALAS!
Ultrafast Si Photodetector, rise time <50 ps, fall time 50 ps bandwidth >7.0 GHz, spectral range 170-1100 nm, crystal quartz diffuse window (recommended for high peak power lasers only), SMA connector for the RF output.
20. UPD-50-UP
+
UPD-40-IR2-P		 NEW! Exclusively from ALPHALAS!
SPECIAL PACKAGE of TWO Ultrafast Photodetectors (Si and InGaAs), rise time <40 ps, bandwidth >8.5 GHz for UPD-40-IR2-P, and rise time <50 ps for UPD-50-UP, bandwidth >7.0 GHz for UPD-50-UP. The combination covers the spectral range 170-1700 nm, polished windows, SMA connector for the RF output.
21. UPD-70-IR2-P Ultrafast InGaAs Photodetector, risetime <70 ps, bandwidth >5.0 GHz, spectral range 800-1700 nm, polished window, SMA connector for the RF output.
22. UPD-70-IR2-D Ultrafast InGaAs Photodetector, risetime <70 ps, bandwidth >5.0 GHz, spectral range 800-1700 nm, crystal quartz diffuse window (recommended for high peak power lasers only), SMA connector for the RF output.
23. UPD-70-IR2-FR NEW! Exclusively from ALPHALAS!
Ultrafast InGaAs Photodetector, risetime <70 ps, bandwidth >5.0 GHz, spectral range 800-1700 nm, SMA receptacle, SMA connector for the RF output. Not compatible with the optional filter holder.
24. UPD-70-IR2-FC NEW! Ultrafast InGaAs Photodetector, risetime <70 ps, bandwidth >5.0 GHz, spectral range 800-1700 nm, with SMF-28 fiber 1m length, with FC/APC, SMA connector for the RF output. Not compatible with the optional filter holder.
25. UPD-70-UVIR-P NEW! Exclusively from ALPHALAS!
Ultrafast InGaAs Photodetector, risetime <70 ps, bandwidth >5.0 GHz, spectral range 350-1700 nm, polished window MgF2, SMA connector for the RF output.
26. UPD-70-UVIR-D NEW! Exclusively from ALPHALAS!
Ultrafast InGaAs Photodetector, risetime <70 ps, bandwidth >5.0 GHz, spectral range 350-1700 nm, crystal quartz diffuse window (recommended for high peak power lasers only), SMA connector for the RF output.
27. UPD-100-IR1-P NEW! Exclusively from ALPHALAS!
Ultrafast Ge-doped-Photodetector, risetime <100 ps, bandwidth >3.0 GHz, pulse width (FWHM) 300 ps, spectral range 400-2000 nm, dark current typ. 700 nA, active area 80 μm diameter, polished window, SMA connector for the RF output, negative output. Needs -12 V negative supply.
28. UPD-200-SP Ultrafast Si Photodetector, risetime <175 ps, bandwidth >2.0 GHz, spectral range 320-1100 nm, polished window, BNC connector for the RF output.
29. UPD-200-SD Ultrafast Si Photodetector, risetime <175 ps, bandwidth >2.0 GHz, spectral range 320-1100 nm, crystal quartz diffuse window (recommended for high peak power lasers only), BNC connector for the RF output.
30. UPD-200-UP Ultrafast Si Photodetector, risetime <175 ps, bandwidth >2.0 GHz, spectral range 170-1100 nm, polished window MgF2, BNC connector for the RF output.
31. UPD-200-UD Ultrafast Si Photodetector, risetime <175 ps, bandwidth >2.0 GHz, spectral range 170-1100 nm, crystal quartz diffuse window (recommended for high peak power lasers only), BNC connector for the RF output.
32. UPD-300-SP Ultrafast Si Photodetector, risetime <300 ps, bandwidth >1.0 GHz,
spectral range 320-1100 nm, polished window, BNC connector for the RF output.
33. UPD-300-SD Ultrafast Si Photodetector, risetime <300 ps, bandwidth >1.0 GHz, spectral range 320-1100 nm, crystal quartz diffuse window (recommended for high peak power lasers only), BNC connector for the RF output.
34. UPD-300-UP Ultrafast Si Photodetector, risetime <300 ps, bandwidth >1.0 GHz, spectral range 170-1100 nm, polished window MgF2, BNC connector
35. UPD-300-UD Ultrafast Si Photodetector, risetime <300 ps, bandwidth >1.0 GHz, spectral range 170-1100 nm, crystal quartz diffuse window (recommended for high peak power lasers only), BNC connector for the RF output.
36. UPD-500-SP Ultrafast Si Photodetector, risetime <500 ps, bandwidth >0.6 GHz, spectral range 320-1100 nm, polished window, BNC connector for the RF output.
37. UPD-500-SD Ultrafast Si Photodetector, risetime <500 ps, bandwidth >0.6 GHz, spectral range 320-1100 nm, crystal quartz diffuse window (recommended for high peak power lasers only), BNC connector for the RF output.
38. UPD-500-UP Ultrafast Si Photodetector, risetime <500 ps, bandwidth >0.6 GHz, spectral range 170-1100 nm, polished window MgF2, BNC connector for the RF output.
39. UPD-500-UD Ultrafast Si Photodetector, risetime <500 ps, bandwidth >0.6 GHz, spectral range 170-1100 nm, crystal quartz diffuse window (recommended for high peak power lasers only), BNC connector for the RF output.
40. UPD-3N-IR2-P NEW! Exclusively from ALPHALAS! Greatly improved performance! Ultrafast InGaAs PIN Photodetector, risetime <150 ps, fall time < 600 ps, FWHM 1 ns, bandwidth >400 MHz, spectral range 800-2100 nm, polished window, BNC connector for the RF output. Needs +6 VDC supply.
41. UPD-5N-IR2-P NEW! Exclusively from ALPHALAS! Greatly improved performance! Ultrafast InGaAs PIN Photodetector, risetime <200 ps, fall time < 900 ps, FWHM 1 ns, bandwidth >300 MHz, spectral range 800-2600 nm, polished window, BNC connector for the RF output. Needs +6 VDC supply.
42. UPD-2M-IR2-P NEW! Exclusively from ALPHALAS! Ultrafast InGaAs PIN Photodetector, risetime <75 ns, bandwidth >0.004 GHz, spectral range 900-1700 nm, sensitive area 2 mm diameter, polished window, BNC connector for the RF output.
43. UPD-2M-IR2-P-1TEC NEW! Exclusively from ALPHALAS! Ultrafast InGaAs PIN Photodetector, risetime <75 ns, bandwidth >0.004 GHz, spectral range 900-1700 nm, sensitive area 2 mm diameter, with TEC cooling module, polished window, BNC connector for the RF output.
44. TERM-50-BNC External 50 Ohm terminating RF-load with a BNC connector (recommended when UPD is used in combination with any of the BBA amplifiers or oscilloscopes with 1 MOhm input impedance)
45. FR-UPD Option for the UPD Photodetectors with SMA Receptacle for
Fiber-Coupling
46. PS-UPD-12-EU Low-Noise Power Supply for the UPD Photodetectors,
input: 220-240 V AC (European standard), output: 12 V DC
47. PS-UPD-12-WW Low-Noise Power Supply for the UPD Photodetectors,
universal input: 100-240 V AC (worldwide), output: 12 V DC
48. PS-UPD-9-WW Low-Noise Power Supply for the UPD Photodetectors,
universal input: 100-240 V AC (worldwide), output: 9 V DC (matched to UPD-30-VSG-P photodiode)
49. PS-UPD-6-WW Low-Noise Power Supply for the UPD Photodetectors,
universal input: 100-240 V AC (worldwide), output: 6 V DC (matched to UPD-15-IR2-FC, UPD-3N-IR2-P and UPD-5N-IR2-P
photodiode)
50. BAT-UPD-6V Bias Battery for the UPD Photodetectors, 6 V
51. BNC-UPD-1M BNC (male)/ BNC (male) cable 50 Ohm impedance, RG58, 1 m long
52. SMA-UPD-1M SMA (male)/SMA (male) cable 50 Ohm impedance, RG174, 1 m
53. SMA-BNC-AD SMA / BNC adapter: SMA: male, BNC: female
54. UPD-FH Filter holder for up-to 3 filters, each up-to 4.5 mm thickness, to be
attached in front of the UPD photodiode (filters are NOT included)
Broadband Pulse Amplifiers: BBA Series
55. BBA-3 Broadband Inverting Amplifier, Bandwidth 50 kHz to 14.5 GHz, gain 10 dB (>3x amplitude),Gain flatness: +/-5 dB for f<4 GHz;
Rise time: typ. 22 ps
Max. power out: +12 dBm (100 MHz), +14 dBm (5 GHz), + 11 dBm (10 GHz), Effective RMS input noise: 112 μV, Maximum RF in: + 10 dBm, peak: 1 V, Return loss (100 MHZ) S11 input: 15 dB, S22 output: 18 dB, SMA-connectors, needs 12 V DC
56. BBA-10 Broadband Inverting Amplifier, 0.01 - 3 GHz, gain 21 dB @ 1GHz
(>10x amplitude), SMA-connectors
57. BBA-15 Broadband Inverting Amplifier, 0.01÷2 GHz, gain 24.5 dB (15x
amplitude), SMA connectors (female)
58. BBA-10-4HP Broadband Inverting Amplifier, 0.01÷ 4 GHz,
gain 19.4 dB (9x amplitude), SMA connectors (female)
59. BBA-100 Broadband Non-Inverting Amplifier,
0.01÷2 GHz, rise time <300 ps,
gain 43.5 dB (>100x amplitude), SMA connectors (female)
60. BBA-100-VG Broadband Non-Inverting Amplifier,
0.01÷2 GHz, variable gain 0 … 43.5 dB (0 - >100x amplitude), SMA connectors (female)
61. TERM-50-INT Integrating a 50 Ohm terminating RF-load at the input of the any of the above amplifiers (recommended when used in combination with
the UPD-series photodiodes)
62. BBA-1W Broadband High-Power Amplifier,
50 MHz÷1 GHz, gain 30 dB, output power: 1 W, SMA connectors, needs 12 V / 1 A supply (not included)
63. BBA-2W-P Broadband High-Power Amplifier,
50 MHz÷1 GHz, gain 20 dB, peak output power: 4 W, average power: 2 W, BNC connectors, needs 24 V / 1 A supply (not included)
64. PS-BBA-09-EU Low-Noise Power Supply for BBA Amplifiers,
input: 240 V AC (European standard), output: 9 V DC
65. PS-BBA-09-WW Low-Noise Power Supply for BBA Amplifiers,
universal input: 100-240 V AC (worldwide), output 9V DC
66. PS-BBA-15-WW Low-Noise Power Supply for BBA-100-VG Amplifiers,
universal input: 100-240 V AC (worldwide), output +15 V DC
Infrared-To-Visible Converters: IR-VIS Series
67. IR-VIS-60-A Infrared-To-Visible Converter, for high-power Nd:YAG lasers,
special ceramics, no bleaching - needs no activation with UV light, active area 2xD60 mm (2x56 cm2), sensitivity 800÷1100 nm and 1460 - 1600 nm, DOUBLE-SIDED !
68. IR-VIS-40-S Infrared-To-Visible Converter, for high-power Nd:YAG lasers,
special ceramics, no bleaching - needs no activation with UV light, active area D40 mm (12.6 cm2), sensitivity 800÷1100 nm and 1460 - 1600 nm, SINGLE SIDED
69. IR-VIS-40-D Infrared-To-Visible Converter, for high-power Nd:YAG lasers,
special ceramics, no bleaching - needs no activation with UV light, active area 2xD38 mm (total 23 cm2), sensitivity 800÷1100 nm and 1460 - 1600 nm, DOUBLE SIDED !
70. IR-VIS-15-S Infrared-To-Visible Converter, for high-power Nd:YAG lasers,
special ceramics, no bleaching - needs no activation with UV light, active area D15 mm (1.8 cm2), sensitivity 800÷1100 nm and 1460 - 1600 nm, SINGLE SIDED
71. IR-VIS-30-QM Infrared-To-Visible Converter, for low average, but high peak power Q-switched or modelocked lasers (max. 1 W, max. 1 mJ/cm2), active area D 30 mm, sensitivity 800÷1400 nm
Advanced Digital High-Speed High-Sensitivity
CCD Line Cameras with USB 2.0 Interface CCD-S3600-D(-UV)
72. CCD-S3600-D Advanced digital high-speed CCD line camera, 3648 pixels with
elongated pixel size (8x200 μm) for high sensitivity, spectral range 320 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0, plug & play, built-in TTL trigger input & output, USB-powered. Includes drivers, libraries & applications for LabVIEW & C++. Supports Windows 7/Vista/XP, Linux, Mac OS X, etc. Housing: 90 x 25 x 105 mm (W x H x D) including USB 2.0 signal & power supply cable for interfacing to a computer
73. CCD-S3600-D-
UV		 Advanced digital high-speed CCD line camera, 3648 pixels with
elongated pixel size (8x200 μm) for high sensitivity, UV to IR spectral range 200 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0, plug & play, built-in TTL trigger input & output, USB-powered. Includes drivers, libraries & applications for LabVIEW & C++. Supports Windows 7/Vista/XP, Linux, Mac OS X, etc. Housing: 90 x 25 x 105 mm (W x H x D)
including USB 2.0 signal & power supply cable for interfacing to a computer
74. CCD-S3600-D-
UV-E		 Advanced digital high-speed CCD line camera, 3648 pixels with
elongated pixel size (8x200 μm) for high sensitivity, UV –enhanced, spectral range 170 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0, plug & play, built-in TTL trigger input & output, USB-powered. Includes drivers, libraries & applications for LabVIEW & C++. Supports Windows 7/Vista/XP, Linux, Mac OS X, etc. Housing: 90 x 25 x 105 mm (W x H x D)
including USB 2.0 signal & power supply cable for interfacing to a computer
75. CAB-TRIG- CCDS-D Trigger cable for trigger input or trigger output for CCD-S3600-D(-
UV), SMB connector on the CCD side, BNC on the other side,
length 100 cm. ONLY for CCD-S3600-D(-UV)!
High-Sensitivity Linear
CCD Arrays with Analog Output CCD-2000M(-UV)
76. CCD-2000M CCD Array, 2048 pixels, elongated pixel size 14x200 μm for high
sensitivity, spectral range 320-1100 nm, with analog driver, OEM,
77. CCD-2000M-UV CCD Array, 2048 pixels, UV-sensitive spectral range 250-1100 nm,
elongated pixel size 14x200 μm for high sensitivity, with driver, OEM
78. PS-CCD-EU AC-DC Adapter for CCD-2000M(-UV) Array, input: 220-240 V AC
(European standard), output: 7.5 V DC, stabilized, low noise
79. PS-CCD-WW AC-DC Adapter for CCD-2000M(-UV) Array, universal input: 100-
240 V AC (worldwide), output: 7.5 V DC, stabilized, low noise
80. CAB-SIG-CCDM Signal Cable, connectors SMB to BNC, length 100 cm
For CCD-2000M(-UV) ONLY!
81. CAB-TRIG-
CCDM		 Trigger Cable, connectors SMB to BNC, length 100 cm
For CCD-2000M(-UV) ONLY!



Tunable Waveplates可调波片

Alphalas



Waveplate Model Waveplate Description
PO-TWP-L4-12-UVIR Tunable True Zero-Order Quarter-Wave (λ/4) Phase Retardation Plate
Range 150 - 6000 nm, aperture D11 mm, thickness 2.0 mm
PO-TWP-L4-25-UVIR Tunable True Zero-Order Quarter-Wave (λ/4) Phase Retardation Plate
Range 150 - 6000 nm, aperture D24 mm, thickness 2.0 mm
PO-TWP-L4-25-IR Tunable True Zero-Order Quarter-Wave (λ/4) Phase Retardation Plate
Range 500 - 6500 nm, aperture D24 mm, thickness 5.0 mm
PO-TWP-L2-12-UVIR Tunable True Zero-Order Half-Wave (λ/2) Phase Retardation Plate
Range 150 - 6000 nm, aperture D11 mm, thickness 2.5 mm
PO-TWP-L2-25-UVIR Tunable True Zero-Order Half-Wave (λ/2) Phase Retardation Plate
Range 150 - 6000 nm , aperture D24 mm, thickness 2.5 mm
PO-TWP-L2-12-IR Tunable True Zero-Order Half-Wave (λ/2) Phase Retardation Plate
Optimized for the range 2000 - 6500 nm, aperture D11 mm, thickness 2.5 mm
PO-TWP-L2-25-IR Tunable True Zero-Order Half-Wave (λ/2) Phase Retardation Plate
Optimized for the range 500 - 6500 nm, aperture D24 mm, thickness 5 mm
PO-TWP-L4-25-FIR Tunable True Zero-Order Quarter-Wave (λ/4) Phase Retardation Plate
Range 1 - 19 μm, aperture D24 mm, thickness 5 mm
PO-TWP-L2-25-FIR Tunable True Zero-Order Half-Wave (λ/2) Phase Retardation Plate
Range 1 - 19 μm, aperture D24 mm, thickness 5 mm
PO-TWP-MP-12-UV Tunable True Zero-Order Waveplate with Freely Adjustable Phase Retardation - MULTIPHASE
Retardation adjustable from 0 to λ (0 to full wave), range 150 - 2000 nm, aperture D11 mm, may replace Soleil-Babinet compensator!
PO-TWP-MP-25-UV Tunable True Zero-Order Waveplate with Freely Adjustable Phase Retardation - MULTIPHASE
Retardation adjustable from 0 to λ (0 to full wave), range 150 - 2000 nm, aperture D24 mm, may replace Soleil-Babinet compensator!
PO-TWP-MP-12-IR Tunable True Zero-Order Waveplate with Freely Adjustable Phase Retardation - MULTIPHASE
Retardation adjustable from 0 to λ (0 to full wave), range 2000 - 6500 nm, aperture D11 mm, may replace Soleil-Babinet compensator!
PO-TWP-MP-25-IR Tunable True Zero-Order Waveplate with Freely Adjustable Phase Retardation - MULTIPHASE
Retardation adjustable from 0 to λ (0 to full wave), range 2000 - 6500 nm, aperture D24 mm, thickness 5 mm, may replace Soleil-Babinet compensator!
PO-TWP-MP-25-UVIR Tunable True Zero-Order Waveplate with Freely Adjustable Phase Retardation - MULTIPHASE
Retardation adjustable from 0 to λ (0 to full wave), range 150 - 3000 nm, aperture D24 mm, thickness 5 mm, may replace Soleil-Babinet compensator!
PO-TWP-DW-2/1-12-UV Tunable True Zero-Order DUAL-WAVELENGTH Phase Retardation Plate - DUAL-WAVE
Best for frequency tripling arrangements of CW to femtosecond lasers, retardation for fundamental: λ/2 (half-wave), for SH: λ/1 (full-wave), adjustable in the range 300 - 6000 nm (fundamental), aperture D11 mm
PO-TWP-DW-4/2-12-UVIR Tunable True Zero-Order DUAL-WAVELENGTH Phase Retardation Plate - DUAL-WAVE
Best for polarization control of CW to femtosecond lasers, retardation for fundamental: λ/4 (quarter-wave), for SH: λ/2 (half-wave), adjustable in the range 150 - 6000 nm, aperture D11 mm
PO-TWP-DW-2/1-25-UV Tunable True Zero-Order DUAL-WAVELENGTH Phase Retardation Plate - DUAL-WAVE
Best for frequency tripling arrangements of CW to femtosecond lasers, retardation for fundamental: λ/2 (half-wave), for SH: λ/1 (full-wave), adjustable in the range 150 - 3000 nm, aperture D24 mm
PO-TWP-DW-4/2-25-UVIR Tunable True Zero-Order DUAL-WAVELENGTH Phase Retardation Plate - DUAL-WAVE
Best for polarization control of CW to femtosecond lasers, retardation for fundamental: λ/4 (quarter-wave), for SH: λ/2 (half-wave), adjustable in the range 150 - 6000 nm, aperture D24 mm
PO-TWP-DW-2/1-12-IR Tunable True Zero-Order DUAL-WAVELENGTH Phase Retardation Plate - DUAL-WAVE
Best for frequency tripling arrangements of CW to femtosecond lasers, retardation for fundamental: λ/2 (half-wave), for SH: λ/1 (full-wave), adjustable in the range 2000 - 6500 nm, aperture D11 mm
PO-TWP-DW-2/1-25-IR Tunable True Zero-Order DUAL-WAVELENGTH Phase Retardation Plate - DUAL-WAVE
Best for frequency trippling arrangements of CW to femtosecond lasers, retardation for fundamental: λ/2 (half-wave), for SH: λ/1 (full-wave), adjustable in the range 2000 - 6500 nm, aperture D24 mm
PO-ZWP-L4-800-12-AR True Zero-Order λ/4 Wave Plate, specially developed for fs-Ti:Sapphire
Thickness 2 mm, AR/AR 400-820 nm, aperture D11 mm
PO-ZWP-L2-800-12-AR True Zero-Order λ/2 Wave Plate, specially developed for fs-Ti:Sapphire
Thickness 2 mm, AR/AR 400-820 nm, aperture D11 mm
PO-ZWP-L4-800-25-AR True Zero-Order λ/4 Wave Plate, specially developed for fs-Ti:Sapphire
Thickness 2 mm, AR/AR 400-820 nm, aperture D24 mm
PO-ZWP-L2-800-25-AR True Zero-Order λ/2 Wave Plate, specially developed for fs-Ti:Sapphire
Thickness 2 mm, AR/AR 400-820 nm, aperture D24 mm
PO-ZWP-L4-1064-16-AR True Zero-Order λ/4 Wave Plate, suitable for Nd:YAG, Nd:YLF, Nd:Glass picosecond and femtosecond lasers
MgF2, tunable AR/AR@1064, aperture D16 mm
PO-ZWP-L2-1064-16-AR True Zero-Order λ/2 Wave Plate, suitable for Nd:YAG, Nd:YLF, Nd:Glass picosecond and femtosecond lasers
MgF2, tunable AR/AR@1064, aperture D16 mm




玻色智能科技有限公司光谱仪专家
上海玻色智能科技有限公司
上海: (021)3353-0926, 3353-0928   北京: (010)8217-0506
广州: 139-0221-4841   武汉: 139-1733-4172
全国销售服务热线：4006-171751   Email: info@bosontech.com.cn
www.BosonTech.com.cn    2008-2022 All Rights Reserved!
