USB4000-UV-VIS微型光纤光谱仪

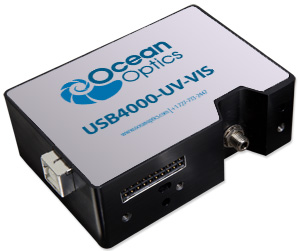

USB4000-UV-VIS微型光纤光谱仪可覆盖200-850 nm的波长范围,采用3648像素的东芝线性CCD阵列,以增强信噪比和电子特性控制。
USB4000-UV-VIS光谱仪采用"USB"光学平台。使用可变长通滤光片消除二级和三级衍射的影响,配有25um的入射狭缝以及探测器紫外增强。波长范围达到200-850nm,光学分辨率为大约1.5nm(FWHM)。
自己去配置USB4000
查看USB4000-VIS-NIR |
 |
可编程微控制器
USB4000-UV-VIS光谱仪有一个板载的可编程微控制器可对光谱仪及其附件进行控制。通过22针的接口,您可以进行许多操作包括控制外部光源,从外部对象获取数据。还提供8个可编程的数字I/O端口连接到别的设备。
光学特性
USB4000-UV-VIS光谱仪采用高性能的3648像素线性CCD阵列探测器,整个光学平台只有手掌那么大。光谱仪接收来自光纤的光能通过固定的狭缝和光栅投射到探测器上,可提供波长范围在200-850
nm的光谱。
模块化设计
当您购买了USB4000-UV-VIS光谱仪后,您可以方便的从海洋光学的生产线中寻找您所需要的光学附件。大多数的附件都采用SMA905的接口,您只要简单地旋出连接器就可以更换或添加采样附件,包括光源,样品池,滤光片,流通池,光纤探头,传感器,聚焦镜,衰减器,漫反射标准,积分球和光纤跳线。
即插即用
USB4000-UV-VIS光谱仪可通过USB2.0接口或RS-232串口连接到电脑,PLC和嵌入式系统中。当使用串口通讯时,需要5伏供电。每个光谱仪都有自己特有的参数存贮在光谱仪的内存中,通过光谱仪软件可以读出这些数据。
串口操作
当使用串口通讯时,需要5伏供电。光谱仪软件SpectraSuite并不提供串口的通讯,不过您可以通过串口指令集来编写您自己控制代码。
SPECIFICATIONS
Physical |
Dimensions: |
89.1 mm x 63.3 mm x 34.4 mm |
Weight: |
190 grams |
Detector Specifications |
Detector: |
Toshiba
TCD1304AP Linear CCD array |
Detector range: |
200-1100 nm |
Useable range: |
200-850 nm |
Pixels: |
3648
pixels |
Pixel
size: |
8
μm x 200 μm |
Pixel
well depth: |
100,000
electrons |
Signal-to-noise ratio: |
300:1 (at full signal) |
A/D resolution: |
16
bit |
Dark noise: |
50 RMS counts |
Corrected linearity: |
>99.8% |
Sensitivity: |
130 photons/count at 400 nm; 60 photons/count at 600 nm |
Optical Bench |
Design: |
f/4, Asymmetrical crossed Czerny-Turner |
Focal length: |
42
mm input; 68 mm output |
Entrance aperture: |
25
um wide slit |
Grating: |
Grating #1 (blazed at 300 nm) |
OFLV filter: |
OFLV-200-850 |
UV enhanced window: |
Yes, UV4 |
Fiber optic connector: |
SMA 905 to 0.22 numerical aperture single-strand optical
fiber |
Spectroscopic |
Wavelength range: |
200-850
nm |
Optical resolution: |
~1.5 nm FWHM |
Signal-to-noise ratio: |
300:1 (at full signal) |
A/D resolution: |
16
bit |
Dark noise: |
50 RMS counts |
Integration time: |
3.8
ms - 10 seconds |
Dynamic range: |
2
x 108 (system), 1300:1 for a single acquisition |
Stray light: |
<0.05% at 600 nm; 0.10% at 435 nm |
Electronics |
Power consumption: |
250 mA @ 5 VDC |
Data transfer speed: |
Full spectrum to memory every 5 ms with USB 2.0 port |
Inputs/Outputs: |
Yes, 8 onboard digital user-programmable GPIOs |
Breakout box compatible: |
Yes,
with the USB-ADP-BB adapter |
Trigger modes: |
4 modes |
Strobe functions: |
Yes |
Connector: |
22-pin connector |
Computer |
Operating systems: |
Windows 98/Me/2000/XP, Mac OS X and Linux with USB port;
Any 32-bit Windows OS with serial port |
Computer interfaces: |
USB 2.0 @ 480 Mbps (USB1.1 compatible); RS-232 (2-wire) @
115.2 K baud |
Peripheral interfaces: |
SPI (3-wire); I2C inter-integrated circuit |
|
