USB2000-FLG 荧光光谱仪
特色
- AgPlus型反射镜增加了系统的灵敏度,比普通的USB2000型光谱仪提高了20%;
- 门控功能消除了离散激励光,增强了磷光测量功能;
- 380-1050nm范围的全波长分析。
AgPlus反射镜
用专门的AgPlus镀银反光镜取代了我们标配的反光镜来增加反光,从而将光谱仪的敏度提高了10~35%。反光镜不仅使光谱仪灵敏度增加,也起到吸收几乎全部的紫外光的作用,实际上消除了干扰样品光谱的激励源。
门控磷光功能
USB2000-FLG光谱仪预载了可变延迟门控微码,允许用户在打开光和光谱仪的积分时间或者探头“看到”样品的时间之间设置一个延迟(5-500微秒),当光源关闭时光谱仪只侦测样品光。
然而,为了使用门控磷光功能,你的荧光团必须有一个长的荧光寿命。此功能对镧系元素和磷光材料特别有用。
L2 聚光镜头
USB2000-FLG光谱仪的探测口装配了L2探测聚光镜头,这个圆柱形镜头增加了光谱仪的聚光率并减少了色散。
L2对于配合弱光应用的粗光纤时非常有用。
附带滤光器
USB2000-FLG光谱仪可与海洋光学的LVF-系列线性滤波片一起使用,建立一个很好的将激励能和荧光相分离的系统。使用我们的LVF-L线性低通滤波片对激励源进行微调来获取大的信号和小的干扰;而在荧光端使用我们的LVF-H线性高通滤波片。
应用范围
USB2000-FLG可以用来探测液体和粉末中和表面的荧光,我们在EDS2000使用USB2000-FLG测量炭疽热。USB2000-FLG是便携式的--可以将它用来测量珊瑚虫,水果和其它植物和动物上的荧光。

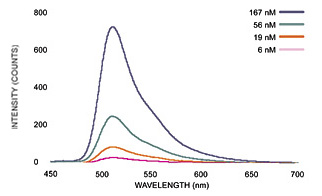

USB2000-FLG荧光光谱仪的样品光谱
图中所示为纳摩尔(nMol)荧光素积聚的荧光辐射情况。我们的实验使用了一个USB2000-FLG型光谱仪,一个LS-450蓝色LED光源,一个CUV-ALL和一个LVF-L低通滤波片将蓝色LED限制在<475nm的范围。我们设置积分时间为100ms。较长的积分时间使系统测量百亿分之一摩尔量级的荧光。
SPECIFICATIONS
Spectrometer:
|
USB2000-FLG;
Master
spectrometer channel only
|
Grating:
|
Grating #3 -- 600 lines per
millimeter, blazed at 500 nm
|
Detector:
|
2048-element linear silicon CCD array;
L2 Collection Lens
|
Wavelength
range:
|
380-1050 nm
|
Entrance
aperture:
|
200 um wide slit
|
AgPlus
Mirrors:
|
Provide
reflectivity >95% over the visible and NIR wavelength range and
over a wide range of angles of incidence
|
Integration time:
|
5
milliseconds in gated mode, 5 msec-20 seconds in normal mode
|
Data
transfer rate:
|
- Full scans (2048 wavelengths) into memory
every 13 milliseconds
- Time acquisition approximately
every 25 milliseconds
|
Optical
resolution:
|
~10.0 nm FWHM
|
Stray
light:
|
~0.05% at 600 nm, <0.10% at 435 nm
|
Power
consumption:
|
90 mA @ 5 VDC
|
Dimensions:
|
89.1 mm x 63.3 mm x 34.4 mm
|
Weight:
|
190 g
|
Computer
interface:
|
Universal
Serial Bus (RS-232 available on side connector)
|
Computer requirements:
|
- IBM-compatible PC with Pentium or better
microprocessor
- 32 MB RAM (16 MB)
- Windows 98/Me/2000/XP, Mac OS X and Linux
when using the USB interface on desktop or notebook PCs.
- Any 32-bit Windows operating system when
using the serial port on desktop or notebook PCs. Windows
- CE 2.11 and above when using the serial
port on handheld PCs.
|
Operating
software:
|
SpectraSuite (for an additional
Call for Price)
|
Fiber
optic connector:
|
SMA 905 to single-strand optical fiber
|
|
