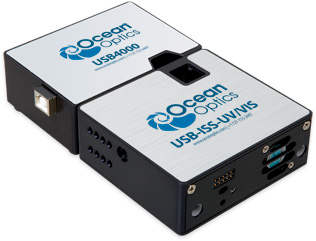

CHEMUSB4-UV-VIS光谱仪

CHEMUSB4-UV-VIS光谱仪系统类似于一个分光光度计,是海洋光学的USB接口光谱仪技术与标准附件的完美结合。这套系统由下列组件构成:结合了USB4000光谱仪,氘钨卤光源,1cm大小的试管支架和高速电子特性的操作软件。

CHEMUSB4-UV-VIS光谱仪系统覆盖了210-880nm光谱范围,光学分辨率为1.0nm(FWHM),能在1秒内获取3648象素的波长光谱。

SPECIFICATIONS

Physical

Spectrometer dimensions: 89.1 mm x 63.3 mm x 34.4 mm
Spectrometer weight: 190 grams
Light source dimensions: 89.1 mm x 77.79 mm x 34.4 mm
Light source weight: 200 g
Detector Specifications

Detector:

Toshiba TCD1304AP Linear CCD array

Pixels:

3648 pixels

Pixel size:

8 um x 200 um

Pixel well depth:

100,000 electrons

Signal-to-noise ratio: 300:1 (at full signal)
A/D resolution: 16 bit
Corrected linearity: >99.8%
Sensitivity: 130 photons/count at 400 nm; 60 photons/count at 600 nm
Optical Bench
Design: f/4, Asymmetrical crossed Czerny-Turner
Focal length: 42 mm input; 68 mm output
Entrance aperture: 25 um wide slit
Grating: Grating #1
OFLV filter: OFLV-200-850
UV enhanced window: Yes, UV4
Fiber optic connector: SMA 905 to 0.22 numerical aperture single-strand optical fiber
Spectroscopic
Wavelength range: 210 to 880 nm
(The actual range typically exceeds what's listed here. The range listed is where you will see changes as small as 0.01 absorbance units.)
Optical resolution: 1.0 nm FWHM
Signal-to-noise ratio: 300:1 (at full signal)
A/D resolution: 16 bit
Dark noise: 50 RMS counts
Integration time: 3.8 ms to 10 seconds
Dynamic range: 2 x 108 (system), 1300:1 for a single acquisition
Stray light: <0.05% at 600 nm; 0.10% at 435 nm
Light Source/Sample Holder
Power consumption: 1.8 A @ 5 VDC; external power supply (included)
Pathlength: 1 cm
Cuvette shape: Square
Light source: Deuterium tungsten
"Z" dimension: 15 mm
Bulb life (hours): 800 deuterium; 2,000 tungsten
Time to stabilized output: ~30 minutes
Electronics
Power consumption: 250 mA @ 5 VDC
Data transfer speed: Full scans to memory every 4 ms with USB 2.0 port, 18 ms with USB 1.1 port
Inputs/Outputs: Yes, 8 onboard digital user-programmable GPIOs
Analog channels: No
Auto nulling: Yes
Breakout box compatible: Yes, HR4-BREAKOUT (with the USB-ADP-BB adapter)
Trigger modes: 5 modes
Strobe functions: Yes
Connector: 22-pin connector
Computer
Operating systems: Windows 98/Me/2000/XP, Mac OS X and Linux with USB port; Any 32-bit Windows OS with serial port
Computer interfaces: USB 2.0 @ 480 Mbps (USB1.1 compatible); RS-232 (2-wire) @ 115.2 K baud
